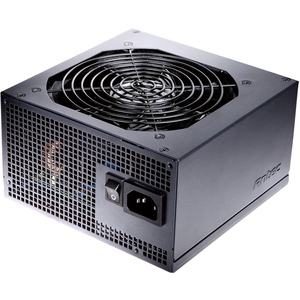

> > > Antec Truepower New 650W Modular Power Supply ATX12V V2.3 Active PFC 80 Plus SLI Ready 120MM PWM Fan (10370AC5950)

Antec Truepower New 650W Modular Power Supply ATX12V V2.3 Active PFC 80 Plus SLI Ready 120MM PWM Fan

Other products from ANTEC | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available Real Time Check

Vancouver: ETA 2011-07-26
Toronto:    0

Details:

Shipping Weight: 5.99 lbs

SKU #:(10370AC5950)

Mft. Part #: TP-650

Specifications
Quick Specs:
Efficiency 82%
Input Voltage 110 V AC 220 V AC
Output Power 650 W
Limited Warranty 5 Year
Output Voltage 3.3 V DC @ 25 A 5 V DC @ 25 A 12 V DC @ 22 A 12 V DC @ 25 A -12 V DC @ 800 mA 5 V DC @ 3 A
Weight (Approximate) 5 lb
Form Factor Internal
Country of Origin China
Height 3.4"
Width 5.9"
Depth 5.9"
Number of Fans 1
Green Compliant Yes
Green Compliance Certificate/Authority 80 Plus Bronze
NVIDIA SLI Supported Yes
Number of +12V Rails 4

Brand Name    Antec
Manufacturer    Antec, Inc
Manufacturer Part Number    TP-650
Manufacturer Website Address    http://www.antec.com
Marketing Information

New features. Same true power. The TruePower New series by Antec offers users an advanced PSU solution, striking the perfect balance of reliability, efficiency and quality. With sophisticated new features like DC to DC voltage regulator modules for greater system stability, a 120mm Pulse Width Modulation fan (PWM) which runs up to 50% quieter, and 80 PLUS Bronze certification, the TP-650 delivers 650 watts of power that is not only reliable and quiet, but incredibly energy-efficient. Antec's TP-650 is truly the advanced PSU solution for elite system builders and quality-minded enthusiasts alike.


Product Line    TruePower
Product Model    TP-650
Product Name    TruePower TP-650 ATX12V & EPS12V Power Supply
Product Type    ATX12V & EPS12V Power Supply
Plug/Connector    On/Off Switch
Receptacles    4 x ATX12V Motherboard
1 x 8-pin EPS12V Motherboard
2 x 6-pin PCI-E
2 x 6+2pin PCI-E
Country of Origin    China
Green Compliance Certificate/Authority    80 Plus Bronze
Green Compliant    Yes
Depth    5.9" (149.9 mm)
Form Factor    Internal
Height    3.4" (86.4 mm)
Weight (Approximate)    2.27 kg
Width    5.9" (149.9 mm)
Input Current    9 A @ 110V
4.50 A @ 220V
Input Voltage    110 V AC
220 V AC
Input Voltage Range    100 V AC to 240 V AC
Input Voltage Type    AC
Number of +12V Rails    4
Output Power    650 W
Output Voltage    3.3 V DC @ 25 A
5 V DC @ 25 A
12 V DC @ 22 A
12 V DC @ 25 A
-12 V DC @ 800 mA
5 V DC @ 3 A
Efficiency    82%
Number of Fans    1
NVIDIA SLI Supported    Yes
Power Factor Correction (PFC)    Active
Protection Type    Over Current
Over Power
Over Voltage
Under Current
Short Circuit
Limited Warranty    5 Year
