Home > Power Supplies > ANTEC > Antec Truepower Quattro 850W Power Supply ATX V2.2 EPS12V 20/24PIN Active PFC 80PLUS Dual 8PIN PCI-E (10370AC9682)

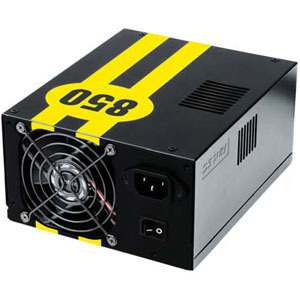

Antec Truepower Quattro 850W Power Supply ATX V2.2 EPS12V 20/24PIN Active PFC 80PLUS Dual 8PIN PCI-E

Other products from ANTEC | (1 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
View more product photos
Availability:

In Stock

Usually ships in 1 to 2 business days.

$9.99 Air Shipping

Details:

Shipping Weight: 5 lbs

SKU #: (10370AC9682)

Mft. Part #: TPQ-850

Our Price:

$151.57

Canadian Funds

Add to wish List

Tell a friend

More from ANTEC

More like this

Print page

Specifications | 1 Customer Reviews | Warranty Information | Sales Terms | Discuss in Forum
HardwareWiki.org Info
Specifications
  • 80 Plus Certified is the newest standard in power supply efficiency.
  • At least 80% high efficiency at any load, will save you money on your electrical bill.
  • Reduce heat in your computer's system.
  • Universal Input, automatically adjusts for 100V to 240V power grids
  • Supports ATX12V v2.2 and EPS12V v2.91 systems
  • Four 12V output circuits provide supreme system stability
  • Gold plated connectors for superior conductivity
  • AQ5 – Antec Quality five-year parts and labor warranty
  • Heavy duty protection circuitry prevents damage resulting from short circuits (SCP), over voltages (OVP), under voltages (UVP), and over current (OCP)


Brand Name    Antec
Dimensions    86 mm Height x 150 mm Width x 180 mm Depth
Efficiency    85%
Form Factor    Internal
Green Compliance    Yes
Green Compliance Certificate/Authority    RoHS
80 Plus
80 Plus Bronze
Input Voltage    110 V AC
220 V AC
Input Voltage Range    100 V AC to 240 V AC
Manufacturer    Antec, Inc
Manufacturer Part Number    TPQ-850
Manufacturer Website Address    www.antec.com
Marketing Information

Full throttle power

You could search the four corners of the earth for a stable and reliable power supply, but actually you need to look no further than Antec's TruePower Quattro! Available in 850 and 1000 Watts, Quattro is more compact than most competing power supplies of the same wattage, yet ideally suited for handling the most demanding system specs. TruePower Quattro is 80PLUS Bronze certified which means that Quattro consumes about 33% less energy than many equivalent power supplies with the same power output. Four 12V rails increase your system stability by letting you distribute your power more than ever before. Comes with four PCI-E connectors for powering one (or even two) of the newest generation of video cards. All modular cables are sleeved and labeled to give your system a clean and professional look-while the racing stripe paint job will add some extra style.
MTBF    100000 Hour
Number of +12V Rails    4
Number of Fans    1
NVIDIA SLI Support    Yes
Output Power    850 W
Output Voltage    3.3 V DC @ 25 A
5 V DC @ 30 A
12 V DC @ 25 A
-12 V DC @ 500 mA
5 V DC @ 3 A
Power Factor Correction (PFC)    Active
Product Line    TruePower Quattro
Product Model    TPQ-850
Product Name    TruePower Quattro TPQ-850 ATX12V & EPS12V Power Supply
Product Type    ATX12V & EPS12V Power Supply
Protection Type    Over Voltage
Under Voltage
Over Current
Short Circuit
Receptacles    1 x 20+4pin ATX Motherboard
1 x 4-pin ATX12V Motherboard
1 x 8-pin EPS12V Motherboard
2 x 6-pin PCI-E
2 x 6+2pin PCI-E
8 x Serial ATA
2 x 4-pin SP4 Floppy Drive
9 x 4-pin LP4 Peripheral Device
Standard Warranty    5 Year
Weight    2.61 kg
1011287200
Customer Reviews

Reviewed by BK2010055942 at @ 11:37 AM Oct 22, 2008

im lucky, i got it on sale for $120, and i was the last one

its long, but is nice and it stays cool which i was worried because theres just 1 80mm fan, i like the fact some of the cables i dont use, i can leave off

great PS, if ever goes on sale, get it, you be happy you did
