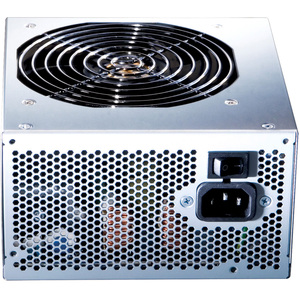

Antec Earthwatts 650W Power Supply ATX12V V2.2 EPS12V Active PFC 80PLUS 120MM Fan

Other products from ANTEC | (1 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
View more product photos
Availability:

In Stock

Usually ships in 1 to 2 business days.
Details:

Shipping Weight: 5.85 lbs

SKU #: (1037184382G)

Mft. Part #: EA650

Our Price:

$79.39

Canadian Funds

Add to wish List

Tell a friend

More from ANTEC

More like this

Print page

Specifications | 1 Customer Reviews | Warranty Information | Sales Terms | Discuss in Forum
HardwareWiki.org Info
Specifications





Don't compromise.
Save energy and maximize performance.

Get more power and lower your electric bill with the new EarthWatts 650! One of the most environmentally-friendly power supplies available, the EarthWatts 650 efficiently delivers 650 Watts of reliable and stable power while meeting 80 PLUS® the highest independently certified standard in energy efficiency. That means the EarthWatts 650 consumes up to 33% less energy than an equivalent power supply with absolutely no reduction in excellent performance. On top of that, the EarthWatts 650 boasts universal input to automatically work on any power grid on the planet, and a 120mm fan to keep cool.


80Plus Information



  • 80 PLUS® certified: reduces operating costs and protects the environment

  • ATX12V version 2.2 and EPS12V version 2.91 compatible

  • 120mm low noise cooling fan

  • Three 12V output circuits provide added system stability

  • Industrial-grade protection circuitry prevents damage resulting from short circuits, power overloads, over voltage, and under voltage

  • 6 SATA connectors

  • One (6+2) PCI-E connector

  • Safety approvals: UL, CUL, FCC, TÜV, CE, CB, C-tick, CCC

  • Universal Input

  • Active Power Factor Correction (PFC)

  • PF value up to 99%

  • AQ3 – Antec Quality three-year parts and labor warranty

  • Unit dimensions:
    • 3.4”(H) x 5.9”(W) x 6”(D)
    • 8.6cm x 15.0cm x 15.2cm

  • Weight:
    • Net: 5.6 lbs / 2.5 kgs


Additional Information
  • Active Power Factor Correction (PFC)
  • Three 12V output circuits provide added system stability
  • Accurate power rating allows EarthWatts to deliver its full rated power (24 hours a day rated at 50
    		•
    Brand Name    Antec
    Certifications & Standards
  • 80 PLUS
  • RoHS
  • UL
  • CUL
  • FCC
  • T
    		•
    Dimensions    8.6cm Height x 15cm Width x 15.5cm Depth
    Form Factor    Internal
    Frequency    50 Hz
    60 Hz
    Green Compliance    Yes
    Green Compliance Certificate/Authority    80 Plus
    RoHS
    Input Voltage    110V AC
    220V AC
    Input Voltage Range    110V AC
    220V AC
    Manufacturer    Antec, Inc
    Manufacturer Part Number    EA650
    Manufacturer Website Address    www.antec.com
    Number of Fans    1
    Output Power    650 W
    Product Line    EarthWatts
    Product Model    EA650
    Product Name    EarthWatts EA650 ATX12V & EPS12V Power Supply
    Product Type    ATX12V & EPS12V Power Supply
    Protection Type    Short Circuit
    Overload
    Over Voltage
    Under Voltage
    Receptacles    1 x 24-pin ATX Motherboard
    1 x 4-pin ATX12V Motherboard
    1 x 8-pin EPS12V Motherboard
    6 x Serial ATA
    2 x 8-pin PCI-E
    Standard Warranty    3 Year
    Version Support    ATX12V v2.2 EPS12V v2.91
    Weight    2.25 kg
    1011269718
    Customer Reviews

    Reviewed by gamer11200 at @ 11:12 AM Jul 11, 2009

    Overall this is an excellent power supply. I currently have this powering a Q8200 with 4GB ram, 500GB hard drive, DVD & CD Burner and Radeon 4670 and I couldn't be happier. I was using a Thermaltake TR2 430watt power supply (with 65% efficiency) and I have noticed some energy savings aswell as lower temps! Definitely worth picking up!
