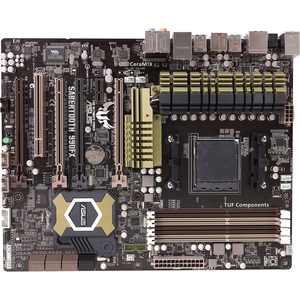

ASUS Sabertooth 990FX AM3+ DDR3 4PCI-E16 1PCI-E1 1PCI SATA3 SLI CrossFireX USB3.0 GBLAN Motherboard

Other products from ASUS | (2 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available (only 27 left)

Limited Quantity Promotion, 1 per customer.
Details:

Shipping Weight: 4.4 lbs

SKU #: (10530BD0472)

Mft. Part #: SABERTOOTH 990FX

HardwareWiki.org Info
Specifications

TUF /tΛf/, stands for The Ultimate Force.

The TUF series delivers a “tough” image. With the unique design & high quality components (military-standard), TUF series is born for pursuing the preeminent stability, all-round compatibility, and extreme durability

"Ultimate COOL!" Thermal Solution

CeraM!X - Heatsink Coating Tech.

50% Larger area for heat dissipation with the revolutionary ceramics-coating technology
Innovative ceramics effectively conducts heat away from the system. It replaces traditional anti-oxidant to dissipate heat better with its microscopic irregular surface and enlarged area. Better cooling leads to overall improvement in system stability.


TUF Thermal Radar

Real Time Temp Detection and Heat Removal
The TUF Thermal Radar monitors temps in critical parts of the motherboard in real time, automatically adjusting fan speeds to make sure the system maintains high stability without overheating. It consists of multiple sensors for various components on the motherboard, giving users the ability to monitor each one individually. The Thermal Radar automatically calculates ideal fan speeds based on different parameters selected by users for each component, keeping everything cooler and longer lasting.

"TUF ENGINE!" Power Design

DIGI+ VRM

Herald the Arrival of a New Digital Power Design Era
The new ASUS DIGI+ VRM design upgrades motherboard power delivery to a digital standard. The 8+2 digital architecture provides the highest power efficiency, generating less heat to enhance longer component lifespan and ensure minimal powerloss. With ASUS DIGI+ VRM, users can easily adjust power phase performance, enabling new PWM voltage and frequency modulation controls. Digital 8+2 power phase design also expands the modulation spectrum for improved stability and lower VRM switching noise by dynamically detecting system load, empowering users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability, and greater power efficiency.

UEFI BIOS

Flexible and Easy BIOS Interface
ASUS UEFI BIOS offers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient mouse input. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.

E.S.P. Efficient Switching Power Design

Optimal power efficiency for key components
Exclusively for this motherboard, the switching power design is provided not only for the CPU and memory, but also for other key components such as graphics cards, LAN and USB 3.0. E.S.P. dramatically improves system efficiency and reduces heat generation.


TUF Components (Alloy Choke, Cap. & MOSFET; Certified by Military-standard)

Certified for Tough Duty
Get rugged performance even in the most challenging conditions with robust TUF chokes, solid capacitors, and MOSFETs--certified through third-party, military-grade testing. TUF Chokes, also known as the “Alloy Choke”, is a made of a compound of various types of metal instead standard iron, enables the support of up to a massive 40A of rated current, 25% higher than conventional component. Furthermore, the single piece packaing also elimates the emission of virbation noise, delivering superb charactoristics as well as durability under extreme conditions.

"Safe & Stable!" Guardian Angel

MemOK!

Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time!

ESD Guards

Unique protection of motherboard components from unexpected electrostatic discharges (ESD)
Electrostatic discharge (ESD) can happen suddenly and its damaging effects is often underestimated. Exclusive ASUS anti-static chip, a protective circuit design, and the I/O shield provides four times better protection to extend component lifespan.


Latest Transfer Technology

AI Suite II

One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities

Front Panel USB 3.0 Support

Convenient USB 3.0 Front Panel Compatibility
ASUS provides standardized USB 3.0 front panel support, compatible with any chassis. Enjoy faster throughput of USB 3.0 without relegating cables or devices to the hard-to-reach rear I/O.




Complete USB 3.0 Solution

Double USB access, double convenience
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The SABERTOOTH 990FX affords greater convenience to high speed connectivity.


CPU, Chipset and Graphics features

AMD® Socket AM3+ for AMD® FX Series CPU up to 8-core

This motherboard supports latest AMD® Socket AM3+ multi-core processors with up to 8-core native CPU cores and delivers better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.

AMD® 990FX Chipset

AMD 990FX Chipset is designed to support up to 5.2GT/s HyperTransport™ 3.0 (HT 3.0) interface speed and dual PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.

Quad-GPU SLI and Quad-GPU CrossFireX Support!

Flexible Multi-GPU solutions, Your Weapon of Choice!
SABERTOOTH 990FX brings multi-GPU configurations through both SLI™ and CrossFireX. This motherboard features the powerful AMD® 990FX/SB950 platform, optimizing PCIe allocation in multiple GPU configurations. Expect a brand new gaming style like you’ve never experienced before!

SABERTOOTH 990FX Product Overview


Guaranteed Service

5 Year Warranty

The ultimate reliability of TUF Series is not only based on advanced thermal design, military-standard components and strict reliability tests, but also on the 5 Years Warranty* which is proudly provided.

* This service will follow the local standard and service policy.
** This service only covers failures or malfunctions that occur during the warranty period and under normal use conditions, as well as any material or workmanship defects.


64-bit Processing    Yes
Audio Channels    7.1
Audio Line In    Yes
Audio Line Out    Yes
Brand Name    Asus
Certifications & Standards
  • ErP Ready
  • FCC
  • CE

  • Chipset Manufacturer    AMD
    Chipset Model    990FX
    Controller Type    Serial ATA/300
    Serial ATA/600
    Depth    9.6"
    eSATA    Yes
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Green Compliance Certificate/Authority    REACH
    WEEE
    Green Compliant    Yes
    HyperTransport Speed    2600 MHz
    Manufacturer    ASUS Computer International
    Manufacturer Part Number    SABERTOOTH 990FX
    Manufacturer Website Address    usa.asus.com
    Marketing Information

    This motherboard supports latest AMD Socket AM3+ multi-core processors with up to 8-core native CPU cores and delivers better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process.


    Maximum Memory    32 GB
    Memory Form Factor    DIMM
    Memory Standard    DDR3-1866/PC3-15000
    DDR3-1600/PC3-12800
    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    Memory Technology    DDR3 SDRAM
    Microphone Port    Yes
    Multi GPU Supported    CrossFireX
    SLI
    Network (RJ-45)    Yes
    Number of eSATA Ports    2
    Number of FireWire/i.LINK 400 Ports    1
    Number of Memory Slots    4
    Number of Network (RJ-45) Ports    1
    Number of Onboard FireWire/i.LINK 400 Ports    1
    Number of Onboard USB 2.0 Ports    4
    Number of Onboard USB 3.0 Ports    2
    Number of PCI Express x1 Slots    1
    Number of PCI Express x16 Slots    3
    Number of PCI Express x4 Slots    1
    Number of PCI Slots    1
    Number of PS/2 Ports    1
    Number of S/PDIF Out Ports    1
    Number of SATA Interfaces    8
    Number of Total Expansion Slots    6
    Number of USB 2.0 Ports    10
    Number of USB 3.0 Ports    2
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Onboard Serial Header    Yes
    Onboard Video    No
    Package Contents
  • SABERTOOTH 990FX Desktop Motherboard
  • User's Manual
  • ASUS Q-Shield
  • 4 x SATA 6Gb/s Cables
  • 1 x SLI Bridge
  • 1 x Q-connector (2 in 1)
  • 1 x TUF Certification Card
  • 1 x TUF 5 Year Warranty Manual

  • PCI Express Standard    PCI Express 2.0
    Power Supply Supported    ATX12V
    Processor Socket    Socket AM3+
    Processor Supported    Athlon II
    Athlon II X2
    Athlon II X3
    Athlon II X4
    Phenom II
    Phenom II X2
    Phenom II X3
    Phenom II X4
    Phenom II X6
    Sempron
    Processor Technology    Turbo CORE Technology
    Cool'n'Quiet Technology
    HyperTransport 3.0 Technology
    Product Model    SABERTOOTH 990FX
    Product Name    SABERTOOTH 990FX Desktop Motherboard
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    RAID Levels    0
    1
    5
    1+0
    RAID Supported    Yes
    S/PDIF    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC 892
    Standard Warranty    5 Year
    Total Number of FireWire/i.LINK Ports    1
    Total Number of Onboard FireWire/i.LINK Ports    1
    Total Number of Onboard USB Ports    6
    Total Number of PCI Express Slots    5
    Total Number of USB Ports    12
    Total Processor Supported    1
    Width    12.0"
    1020062250
    Customer Reviews

    Reviewed by AV2010101870 at @ 07:56 PM Sep 28, 2012

    Pretty good Mobo, great non-DOS Bios

    Pretty easy multi boot and OC

    Reviewed by JB2010074652 at @ 04:37 AM Oct 23, 2011

    Never again buying an ASUS product.
