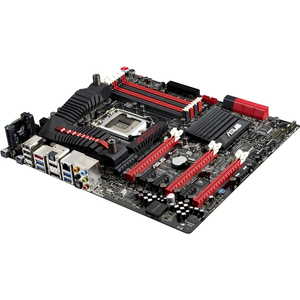

ASUS Maximus V Formula E-ATX LGA1155 Z77 DDR3 CrossFireX SLI 3PCI-E16 SATA3 DP USB3.0 Motherboard

Other products from ASUS | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available (only 8 left)

Limited Quantity Promotion, 1 per customer.
Details:

Shipping Weight: 5 lbs

SKU #: (10530BD2137)

Mft. Part #: Maximus V FORMULA

HardwareWiki.org Info
Specifications

The Republic of Gamers consists only the best of the best. We offer the best hardware engineering, the fastest performance, the most innovating ideas, and we welcome the best gamers to join in.

In the Republic of Gamers, mercy rules are only for the weak, and bragging rights means everything. We believe in making statements and we excel in competitions. If your character matches our trait, then join the elite club, make your presence felt, in the Republic of Gamers.

ASUS ROG Maximus V Formula Z77 gaming motherboard Video

Maximus V Formula Product Overview

ROG Gaming Features

SupremeFX IV

AMPed for Perfect Audio
SupremeFX IV builds on its predecessors, with a carefully tested set of audio capacitors that provide a warmer sound, and a new 300 ohm headphone amplifier built-in, it gives both greater grunt and better gaming audio than ever before. Combined with existing SupremeFX innovations such as the 'Red Line' physical PCB separation, and EMI shield, SupremeFX IV sets an unparalleled audio standard for PC gamers.

GameFirst II

Put Your Frags First
Offering powerful, yet easy-to-use network control, ROG GameFirst II with cFos Traffic Shaping technology is revamped with a more intuitive ROG user interface. Featuring both an exclusive EZ Mode for beginners to setup and Advanced Mode for professional users to tweak, it means whatever your PC does in the background; your fragging will always come first!

Intel Gigabit LAN

Experience the fast network connectivity!
The LAN solution from Intel has been long known to have a better throughput, lower CPU utilization as well as better stability. With the Intel Gigabit LAN solutions onboard, the ultimate network experience can therefore be delivered to its users like never before.

ROG Exclusive Features

mPCIe Combo + Dual-band Wi-Fi/Bluetooth 4.0

Combo Power Up!
Hook up immediate extra connectivity to the ROG motherboard and say so long to physical limitations. The unique Combo attaches to the motherboard near the rear I/O , and comes with one mSATA port supporting Intel® Smart Response Technology hybrid storage acceleration with compatible mSATA SSDs, and a dual band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0 card bundled into its mini PCI Express 2.0/USB 2.0 combo port on the opposite side. This way, you can connect extra devices without taking up valuable space on the motherboard, and get the best of both worlds: for better connectivity and expandability without sacrificing essential features.

Fusion Thermo

Sharp ROG looks and cooler temps with patent-pending innovation
Fusion Thermo offers the world’s first air and water cooling-ready thermal design, available on ROG Maximus V Formula motherboards. Alongside a premium heatsink, it integrates a heatpipe and an all-copper water channel with electroplated barbs on both ends, making it the most flexible choice for power users. It brings better heat removal from critical power delivery components and quicker liquid cooling setups for an undisputed overclocking advantage. > Check QVL

ROG Connect

Plug and Overclock - Tweak it the hardcore way!
Monitor the status of your desktop PC and tweak its parameters in real-time via a notebook—just like a race car engineer—with ROG Connect. ROG Connect links your main system to a notebook through a USB cable, allowing you to view real-time POST code and hardware status readouts on your notebook, as well as make on-the-fly parameter adjustments at a purely hardware level.

Extreme Engine Digi+ II

Optimum power efficiency with premium components and intelligent digital design
The Extreme Engine Digi+ II has been upgraded and equipped with the finest Japan-made 10K Black Metallic capacitors, while the digital VRM design allows you to achieve ultimate performance with adjustable CPU and memory power management frequencies. Precise adjustments create  greater efficiency, stability, double lifespan and performance for total system control.

ROG CPU-Z

Whole new design of CPU-Z
ROG CPU-Z is a customized ROG version authorized by CPUID. It has the same functionality and credibility as the original version, with a unique design. Use the whole new look of ROG CPU-Z to truly report your CPU related information and your uniqueness.

Multi-GPU Technology

LucidLogix Virtu MVP

Up to 60% Hybrid Graphics Boost and 3X Faster Video Conversion
LucidLogix Virtu MVP featuring HyperFormance™ Technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel® processor graphics and Windows® 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel® Quick Sync Video 2.0 technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA® and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency.

* LucidLogix® Virtu Universal MVP™ supports Windows® 7 operating system.
** Intel® Quick Sync Video feature is supported by 3rd/2nd generation Intel® Core™ processor family.
*** System Config: OS: Windows 7 64bit SP1 | MB: P8Z77-V DELUXE | CPU: CPU-1155-QB15-2700K-3.5G-Sandy BRIDGE100-8M |DIMM: DDR3 G.SKILL 17000CL9Q-16GBZH 4GB * 4 | Lucidvirtu MVP version: V2.1.110.19997 | On-board Intel VGA Driver version: V8.15.10.2598 | ASUS GTX580 Driver version: V8.17.12.8562

SLI/CrossFire On-Demand

Why choose when you can have both?
SLI or CrossFireX? Fret no longer because with the ROG Maximus V Formula Series, you’ll be able to run both multi-GPU setups. The board features SLI/CrossFire on Demand technology, supporting up to Quad-GPU SLI or Quad-GPU CrossFireX configuration. Whichever path you take, you can be assured of jaw-dropping graphics at a level previously unseen.

CPU Feature

LGA1155 Intel® 3rd/2nd Generation Core™ i7/ Core™ i5/ Core™ i3/ Pentium® / Celeron® Processors Ready

This motherboard supports LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processorsare among the most powerful and energy efficient CPUs in the world

Chipset Features

PCI Express® 3.0

PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them.
* Actual PCIe speed depends on installed CPU type.

Intel® Z77 Chipset

The Intel® Z77 Express Chipset is a single-chipset design to support LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel® Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance.

ASUS Crystal Sound

DTS Connect

Expand Your PC Audio Experience
To get the most out of your audio entertainment across all formats and quality levels, DTS Connect combines two enabling technologies. DTS Neo:PC™ upmixes stereo sources (CDs, MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound. Consumers can then connect their PC to a home theater system.DTS Interactive is capable of performing multi-channel encoding of DTS bitstreams on personal computers, and sending encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to deliver audio to an external decoder.

DTS UltraPC II

DTS UltraPC II delivers exceptional 7.1 surround through the most popular PC audio setups - your existing stereo speakers or headphones. In addition to virtual surround, it upgrades original sound to new levels with Audio Restoration, recreating the dynamic range of audio files. Symmetry mode improves the balance of perceived loudness across different input sources and Enhance boosts audio quality through high and low frequency equalization. With these technologies, users experience better home theater audio with ease.


64-bit Processing    Yes
Audio Channels    7.1
Audio Line In    Yes
Audio Line Out    Yes
Bluetooth    Yes
Brand Name    ROG
Buttons & Keys    Reset
GO
Power
CMOS Clear
Certifications & Standards
  • FCC
  • CE

Chipset Manufacturer    Intel
Chipset Model    Z77 Express
Controller Type    Serial ATA/300
Serial ATA/600
Depth    10.1"
DisplayPort    Yes
eSATA    Yes
Form Factor    Extended ATX
Gigabit Ethernet    Yes
Graphics Controller Manufacturer    Intel
Graphics Memory Accessibility    Shared
Graphics Memory Technology    DDR3 SDRAM
Green Compliance Certificate/Authority    RoHS
WEEE
Green Compliant    Yes
HDMI    Yes
Manufacturer    ASUS Computer International
Manufacturer Part Number    MAXIMUS V FORMULA
Manufacturer Website Address    usa.asus.com
Marketing Information

The Republic of Gamers consists only the best of the best. We offer the best hardware engineering, the fastest performance, the most innovating ideas, and we welcome the best gamers to join in.

In the Republic of Gamers, mercy rules are only for the weak, and bragging rights means everything. We believe in making statements and we excel in competitions. If your character matches our trait, then join the elite club, make your presence felt, in the Republic of Gamers.


Maximum Memory    32 GB
Memory Form Factor    UDIMM
Memory Standard    DDR3-2800/PC3-22400 (O.C.)
DDR3-2600/PC3-20800 (O.C.)
DDR3-2666/PC3-21330 (O.C.)
DDR3-2400/PC3-19200 (O.C.)
DDR3-2200/PC3-17600 (O.C.)
DDR3-2133/PC3-17000 (O.C.)
DDR3-1866/PC3-15000 (O.C.)
DDR3-1600/PC3-12800
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
Memory Technology    DDR3 SDRAM
Microphone Port    Yes
Multi GPU Supported    SLI
CrossFireX
Network (RJ-45)    Yes
Number of DisplayPort Outputs    1
Number of eSATA Ports    1
Number of HDMI Outputs    1
Number of Memory Slots    4
Number of mSATA Interfaces    1
Number of Network (RJ-45) Ports    1
Number of Onboard USB 2.0 Ports    4
Number of Onboard USB 3.0 Ports    2
Number of PCI Express x1 Slots    3
Number of PCI Express x16 Slots    3
Number of PCI Express x4 Slots    1
Number of S/PDIF Out Ports    2
Number of SATA Interfaces    8
Number of Total Expansion Slots    7
Number of USB 2.0 Ports    4
Number of USB 3.0 Ports    4
Onboard Audio Header    Yes
Onboard LEDs Header    Yes
Onboard S/PDIF Header    Yes
Onboard Video    CPU Dependent Video
Package Contents
  • Maximus V Formula Desktop Motherboard
  • User's Manual
  • I/O Shield
  • 2 x SATA 3Gb/s Cable(s)
  • 4 x SATA 6Gb/s Cable(s)
  • 1 x SLI Bridge(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x ROG Connect Cable(s)
  • 1 x 12 in 1 ROG Cable Label(s)
  • 1 x mPCIe Combo Card(s)
  • 1 x 2-in-1 RF Cable(s)
  • 2 x Wi-Fi Ring Moving Antenna(s)

PCI Express Standard    PCI Express 3.0
PCI Express 2.0
Power Supply Supported    ATX12V
Processor Socket    Socket H2 LGA-1155
Processor Supported    Core i5
Core i7
Core i3
Pentium
Celeron
Processor Technology    Turbo Boost 2.0 Technology
Smart Response Technology
Product Model    Maximus V Formula
Product Name    Maximus V Formula Desktop Motherboard
Product Type    Desktop Motherboard
RAID Levels    0
1
5
1+0
RAID Supported    Yes
S/PDIF    Yes
Sound Controller Manufacturer    Creative
Sound Controller Model    SupremeFX IV
Total Number of Onboard USB Ports    6
Total Number of PCI Express Slots    7
Total Number of USB Ports    8
Total Processor Supported    1
Wi-Fi    Yes
Wi-Fi Standard    IEEE 802.11a/b/g/n
Width    12.0"
