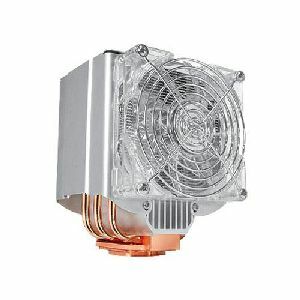

Coolermaster Hyper 6+ Copper Alum Heatpipe CPU Heatsink Fan 1800~3600RPM 31.33-72.14CFM 20.6~46.4DBA

Other products from COOLERMASTER | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 2 lbs

SKU #: (11130AC5369)

Mft. Part #: RR-UNH-P0U1

HardwareWiki.org Info
Specifications

Socket Type Socket A/370/462/478/754/939/940/LGA 775

Heat Sink Dimension 88x88x35 mm

Heat Sink Material 6 heat pipes, aluminum and copper alloy

Fan Dimension 100x100x25 mm

Fan Speed 1800 ~ 3600 R.P.M. (Control by PWM)

Fan Air flow 31.33 ~ 72.14 CFM

Fan Air Pressure 0.96 ~ 4.46 mmH2O

Fan Life Expectance 50,000 hrs

Bearing Type Rifle Bearing

Voltage Rating 12 V

Noise Level 20.6 ~ 46.4 dB(A)

Connector 4 pin (PWM) / 3 pin (without PWM) (Foolproof Design)

Weight 795.3g (without FAN)

Thermal Resistance 0.25 ~ 0.36 /W (Testing with Intel® Pentium® 4 570J)


Additional Information
  • Heat Sink Material: 6 heat pipes, aluminum and copper alloy
  • Fan Air Pressure: 0.96 ~ 4.46 mm H2O
  • Voltage Rating: 12 V

  • Air Flow    72.1 CFM
    Application/Usage    Processor
    Brand Name    Cooler Master
    Compatibility

    Socket Type: Socket A/370/462/478/754/939/940/LGA 775


    Connectors    3-pin
    4-pin
    Fan Diameter    100 mm
    Fan Speed    3600 rpm
    Heatsink Depth    1.38"
    Heatsink Height    3.46"
    Heatsink Width    3.46"
    Manufacturer    Cooler Master Co., Ltd
    Manufacturer Part Number    RR-UNH-P0U1
    Manufacturer Website Address    www.coolermaster-usa.com
    Marketing Information

    Hyper 6+ is built for high performance with a uniquely designed of universal retention module. This super silent CPU cooler, with heat-pipe technology, successfully takes heat away. And its 100mm fan provides mass airflow and high air pressure to maximum heat dissipation. The powerful and quiet operation of the Hyper 6+ supports the latest Prescott LGA775, Pentium 4, AMD K8 and K7.


    Material    Aluminum/Copper Heatsink
    Plastic Fan
    Product Name    Hyper 6+ CPU Cooler
    Product Type    Cooling Fan
    Thermal Resistance    32.6°F/W (0.4°C/W)
    10500720
