Specifications
Enthusiasts looking for the optimal in price performance PSU technology will find the Corsair TX series of PSUs will meet even the most demanding of required specifications.
The Corsair TX power supplies are engineered using advanced technology and components typically found with high performance power supplies. With design features such as a dedicated, single +12V rail offer the maximum compatibility with the latest system components.
Energy efficient circuitry capable of delivering greater than 80% efficiency ratings across 20%, 50%, and 100% load conditions make the TX family of PSUs ideal for the value/quality conscious enthusiast. With a large 140mm (120mm on TX650W) diameter temperature-controlled fan that is ultra quiet, yet still more than sufficient to cool the internals of the system, reliability and stability are no longer worries for the gamer, overclocker or enthusiast and high-end system builder.
| Brand Name |
Corsair
|
| Compatibility |
CPU: AMD Intel
|
| Dimensions |
150 mm Height x 86 mm Width x 160 mm Depth
|
| Efficiency |
80%
|
| Green Compliance |
Yes
|
| Green Compliance Certificate/Authority |
80 Plus
|
| Input Current |
12 A @110 V AC/12 A @220 V AC
|
| Input Voltage |
110 V AC
220 V AC
|
| Input Voltage Range |
90 V AC to 264 V AC
|
| Manufacturer |
Corsair Memory
|
| Manufacturer Part Number |
CMPSU-850TX
|
| Manufacturer Website Address |
www.corsairmicro.com
|
| Marketing Information |
The TX850W ATX12V & EPS12V Power Supply has engineered using advanced technology and components typically found with high performance power supplies. With design features such as a dedicated, single +12V rail offer the maximum compatibility with the latest system components. Energy efficient circuitry capable of delivering greater than 80% efficiency ratings across 20%, 50%, and 100% load conditions make the PSU ideal for the value/quality conscious enthusiast. Reliability and stability are no longer worries for the gamer, overclocker or enthusiast and high-end system builder.
|
| MTBF |
100000 Hour
|
| Number of Fans |
1
|
| NVIDIA SLI Support |
Yes
|
| Output Power |
850 W
|
| Output Voltage |
3.3 V DC @ 30 A
5 V DC @ 30 A
12 V DC @ 70 A
-12 V DC @ 800 mA
5 V DC @ 3 A
|
| Power Factor Correction (PFC) |
Active
|
| Product Model |
TX850W
|
| Product Name |

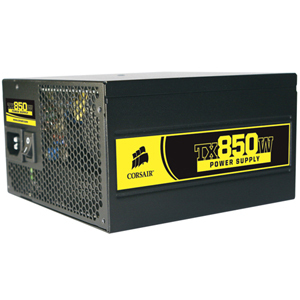

TX850W ATX12V & EPS12V Power Supply
|
| Product Type |
ATX12V & EPS12V Power Supply
|
| Protection Type |
Over Current
Over Voltage
Over Power
Under Voltage
Short Circuit
|
| Receptacles |
1 x 24-pin ATX Motherboard
1 x 4-pin ATX12V Motherboard
1 x 8-pin EPS12V Motherboard
4 x 8-pin PCI-E
|
| Standard Warranty |
5 Year
|
1012668121
Manufacturer's Warranty Contact Information
Corsair's DRAM memory modules all carry a lifetime warranty. The Flash Voyager, Flash ReadOut, TurboFlash, Flash Survivor and Mini Flash products all have a warranty for the expected normal life of the product (10 years). The Flash Padlock has a warranty of 3 years. The HX, TX, and VX Series of Power Supplies have a 5 year warranty, and Liquid Cooling products carry a one year warranty. In general, this means Corsair products are guaranteed to operate, as specified by their datasheet, and in the operating environment for which they were intended, for the life of the product or the extent of the warranty.
For additional information and technical assitance, please visit Corsair Memory's support site at:
http://www.houseofhelp.com/forums/forumdisplay.php?forumid=128
Corsair Technical Support
Phone: 1-800-205-7657
