Home > Power Supplies > CORSAIR > Corsair Professional HX750W 750W ATX 12V 62A 24PIN ATX Modular Power Supply Active PFC 140mm Fan (11180AC5235)

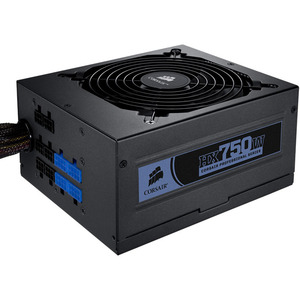

Corsair Professional HX750W 750W ATX 12V 62A 24PIN ATX Modular Power Supply Active PFC 140mm Fan

Other products from CORSAIR | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available (only 8 left)

Limited Quantity Promotion, 1 per customer.

Shipping Weight: 9 lbs

SKU #: (11180AC5235)

Mft. Part #: CMPSU-750HX

HardwareWiki.org Info

Corsair Professional Series power supply units  designed for enthusiasts.

 Corsair Professional Series power supplies set a new standard by which all premium PSUs must be judged. Designed and engineered using cutting-edge technology, each Corsair Professional Series power supply is built to the highest quality standards, and delivers the features and performance that technology enthusiasts demand. Corsair Professional Series power supply units designed for enthusiasts.

*  Continuous power output rated at 50°C
*  Industrial Components for Higher Performance
*   Flat Modular Cables
*  High Efficiency Circuitry Design
*  7-Year Warranty


Brand Name    Corsair
Dimensions    3.4" Height x 5.9" Width x 7.1" Depth
Efficiency    90%
Green Compliance Certificate/Authority    80 Plus Silver
Green Compliant    Yes
Input Voltage    110 V AC
220 V AC
Input Voltage Range    90 V AC to 264 V AC
Manufacturer    Corsair Memory
Manufacturer Part Number    CMPSU-750HX
Manufacturer Website Address    www.corsair.com/us/
Marketing Information

The Corsair CMPSU-750HX PSU utilizes advanced DC-to-DC circuitry and meets 80 PLUS SILVER certification standards for up to 90% energy-efficiency, reducing wasted energy and lowering the amount of excess heat generated. Corsair Professional Series power supplies are built using industrial grade electrical components, ensuring the stable, clean and reliable voltages that are essential for high-end gaming PCs and workstations.

MTBF    100000 Hour
Number of Fans    1
Output Power    750 W
Output Voltage    3.3 V DC @ 25 A
5 V DC @ 25 A
12 V DC @ 62 A
-12 V DC @ 800 mA
5 V DC @ 3 A
Package Contents
  • CMPSU-750HX ATX12V & EPS12V Power Supply
  • Corsair Enhanced Modular Cable Set
  • User Manual
  • AC Power Cord
  • Cable Ties
  • Mounting Screws
  • Corsair Case Badge

  • Power Factor Correction (PFC)    Active
    Product Family    HX
    Product Model    CMPSU-750HX
    Product Name    CMPSU-750HX ATX12V & EPS12V Power Supply
    Product Series    HX
    Product Type    ATX12V & EPS12V Power Supply
    Protection Type    Over Voltage
    Over Current
    Short Circuit
    Over Power
    Under Voltage
    Receptacles    1 x 24-pin ATX Motherboard
    1 x 4-pin ATX12V Motherboard
    1 x 8-pin EPS12V Motherboard
    4 x 6+2pin PCI-E
    12 x Serial ATA
    8 x 4-pin Peripheral Device
    2 x Floppy Drive
    Standard Warranty    7 Year
