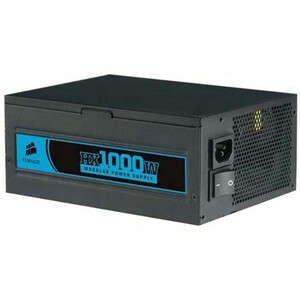

Corsair Professional HX1000W 1000W ATX 12V 80A 24PIN ATX Modular Power Supply Active PFC 140mm Fan

Other products from CORSAIR | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available (only 50 left)

Limited Quantity Promotion, 1 per customer.

Shipping Weight: 6 lbs

SKU #: (11180AC6758)

Mft. Part #: CMPSU-1000HX

HardwareWiki.org Info

Powering the Future

The Corsair HX1000W features six PCI-Express connectors, both
6-pin and 8-pin compatible, to power multiple high-end graphics cards and two
EPS12V connectors for dual CPU configurations. The truly independent dual
transformer, dual rail design allow for optimum load balancing resulting in
greater performance and stability. Industrial-grade 105¡ãC primary, secondary and
solid state capacitors provide up to four times the lifespan of traditional

The HX1000W not only delivers one thousand watts of clean power
for the highest performance enthusiast systems, it does so at greater than 80%
efficiency thanks to the double-forward switching design and multiple rail
DC-to-DC converter. Due to its best-in-class efficiency the HX1000W is able to
run cool and quiet with only a single 140mm thermally controlled fan.

Corsair HX1000W Features:

  • Guaranteed to deliver 1000W of continuous
    power at 50¡ãC

  • 80%+
    energy efficient under real world load conditions

  • True
    independent dual rail design for maximum compatibility

  • Combined 80A of power on +12V

  • Multiple GPU ready

  • 105¡ãC solid state capacitors

  • Active Power Factor Correction (PFC) with PF value of 0.99 to ensure clean
    and reliable power

  • Supports the latest ATX12V 2.2 and EPS12V 2.91 Standards. Backwards
    compatible with ATX12V 2.01

  • Auto
    switching circuitry provides universal AC input 90-264V

  • Over
    Current/Voltage/Power Protection, Under Voltage Protection and Short Circuit
    Protection provide maximum component safety

  • Dimensions: 150mm(W) x 86mm(H) x 200mm(L)

  • Five
    year limited warranty with 24/7 on demand customer service

  • MTBF: 100,000 hours

Additional Information    Active Power Factor Correction (PFC) with PF value of 0.99
Brand Name    Corsair
Dimensions    3.4" Height x 5.9" Width x 7.9" Depth
Frequency    50 Hz
60 Hz
Input Voltage    240 V AC
Input Voltage Range    100 V AC to 240 V AC
Manufacturer    Corsair Memory
Manufacturer Part Number    CMPSU-1000HX
Manufacturer Website Address    www.corsair.com/us/
Marketing Information    The HX1000W Power Supply joins the family of well received HX Series Enthusiast Grade Power Supplies known for their rock solid stability, enhanced modular cable design and high efficiency. The Corsair HX1000W Power Supply sets a new standard by which all other high wattage power supplies will be judged.
MTBF    100000 Hour
Number of Fans    1
Output Power    1 kW
Output Voltage    3.3 V DC
5 V DC
12 V DC
-12 V DC
Product Family    HX
Product Model    CMPSU-1000HX
Product Name    CMPSU-1000HX ATX12V &EPS12V Power Supply
Product Series    HX
Product Type    ATX12V & EPS12V Power Supply
Protection Type    Over Current
Over Power
Over Voltage
Under Voltage
Short Circuit
Receptacles    1 x 24-pin ATX Motherboard
1 x 4-pin ATX12V Motherboard
1 x 8-pin EPS12V Motherboard
6 x 8-pin PCI-E
12 x Serial ATA
12 x 4-pin LP4 Peripheral Device
2 x 4-pin SP4 Floppy Drive
Standard Warranty    5 Year Limited
Version Supported    ATX12V v2.01
ATX12V v2.2
EPS12V v2.91
Weight (Approximate)    10.00 lb
