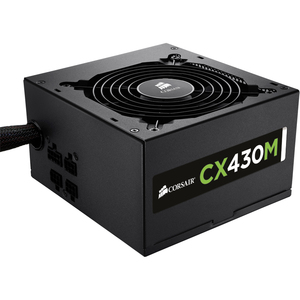

Corsair CX Series ATX PSU:
CX Series™ Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, easy installation. The flexible modular cabling system lets you use only the cables you need, and 80 PLUS Bronze certified efficiency means less excess heat, lower noise, and lower power bills. The large-diameter, thermally controlled fan makes the CX Series Modular quieter at idle, and the large diameter reduces noise even when you’re pushing your system hard. And, the matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Modular Cabling
The modular cabling system lets you use only the cables you need. You get to save space and reduce clutter for a cleaner-looking build and improved airflow.
Reliable and Compatible
CX Series Modular is built and tested to strict standards for trouble-free installation and smooth operation..
Low Noise
80PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.
Good Looks
The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Features
Corsair Engineering and Quality Control
Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series Modular, because you need confidence and reliability regardless of your build budget. Modular Cabling System
Since the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.
Large-Diameter, Thermally Controlled Fan
Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series Modular quiet at idle, and the large diameter reduces noise even when you’re pushing your system hard.
Black Goes with Everything
You’re building a PC, not a battleship, and appearance counts. The matte black finish and all-black sleeved cables and connectors help give your system a high-tech, restrained look.
| Brand Name |
Corsair
|
| Efficiency |
85%
|
| Form Factor |
Internal
|
| Green Compliance Certificate/Authority |
ErP Lot 6
80 Plus Bronze
|
| Green Compliant |
Yes
|
| Input Current |
6.30 A @110 V AC/3.15 A @220 V AC
|
| Input Voltage |
110 V AC
220 V AC
|
| Input Voltage Range |
90 V AC to 264 V AC
|
| Input Voltage Type |
AC
|
| Limited Warranty |
3 Year
|
| Manufacturer |
Corsair
|
| Manufacturer Part Number |
CP-9020058-NA
|
| Manufacturer Website Address |
www.corsair.com
|
| Marketing Information |
CX Series™ Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, easy installation. The flexible modular cabling system lets you use only the cables you need, and 80 PLUS Bronze certified efficiency means less excess heat, lower noise, and lower power bills. The large-diameter, thermally controlled fan makes the CX Series Modular quieter at idle, and the large diameter reduces noise even when you're pushing your system hard. And, the matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
|
| Modular |
Yes
|
| MTBF |
100000 Hour
|
| Number of +12V Rails |
1
|
| Number of Fans |
1
|
| Output Power |
430 W
|
| Output Voltage |
3.3 V DC @ 20 A
5 V DC @ 20 A
12 V DC @ 32 A
-12 V DC @ 800 mA
5 V DC @ 3 A
|
| Package Contents |
- CX430M Power Supply
- Modular Cable Pack
- Installation Guide
|
| Power Factor Correction (PFC) |
Active
|
| Product Family |
CX
|
| Product Model |
CX430M
|
| Product Name |
CX430M Power Supply
|
| Product Series |
CX
|
| Product Type |
ATX12V & EPS12V Power Supply
|
| Protection Type |
Over Voltage
Over Power
Under Voltage
Short Circuit
|
| Receptacles |
1 x 24-pin ATX Motherboard
1 x 8-pin EPS12V Motherboard
1 x 6+2pin PCI-E
3 x 4-pin LP4 Peripheral Device
4 x Serial ATA
1 x 4-pin SP4 Floppy Drive
|
| Weight (Approximate) |
3.27 kg
|
