- Supports the latest ATX12V v2.2 and EPS12V 2.91 standards and is backwards compatible with ATX12V 2.01 systems.
- Guaranteed compatibility with dual-GPU configurations.
- Double forward switching circuitry design offers high efficiency, up to 80% under wide load range.
- Active Power Factor Correction with PF value=0.99 provides clean and reliable power to your system.
- Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that tiny red switch!
- Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that tiny red switch!
- Ultra quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
- Guaranteed to deliver rated specifications at 50ºC.
- Triple 12V Rails provide independent reliable power to the CPU, video card and other components with a combined rating of 50A (40A on 520W) maximum! Advanced circuitry design that automatically enables power sharing between the triple +12V rails in an event of overload on any single +12V rail.
- Powerful +5Vsb rail with 30A rating.
- Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety for your critical system components.
- 105ºC rated industrial grade capacitors provide uncompromised performance and reliability, delivering 4 times the lifespan of conventional 85ºC rated capacitors.
- Enhanced modular flexible cables enable easier cable routing and increased airflow in the system.
- Gold Plated connectors provide oxide free ultra low-resistance contact between the power supply and your critical components.
- 8 Serial ATA connectors (4 on 520W).
- Dimension: 5.9"(W) x 3.4"(H) X 5.9"(L)
150mm(W) x 86mm(H) x 150mm(L)
- MTBF: 100,000 Hour
Safety Approvals: UL, CUL, CE, CB, FCC Class B, TÜV, CCC, C-tick.
| Brand Name |
Corsair
|
| Certifications & Standards |
Safety Approvals: UL CUL CE CB FCC Class B TUV CCC C-tick
|
| Dimensions |
86 mm Height x 150 mm Width x 150 mm Depth
|
| Frequency |
50 Hz
60 Hz
|
| Input Voltage |
264 V AC
|
| Input Voltage Range |
90 V AC to 264 V AC
|
| Manufacturer |
Corsair Memory
|
| Manufacturer Part Number |
CMPSU-620HX
|
| Manufacturer Website Address |
www.corsairmicro.com
|
| Marketing Information |
Corsair has engineered the HX Series to support even the most demanding of systems. The Corsair CMPSU-620HX incorporates the most advanced technology to deliver reliable, continuous, and efficient power to all critical system components. This is the ideal power supply for high performance and gaming PCs, Audio/Video workstations, and file servers.
|
| MTBF |
100000 Hour
|
| Number of Fans |
1
|
| Output Power |
620 W
|
| Output Voltage |
3.3 V DC
5 V DC
12 V DC
-12 V DC
|
| Product Model |
CMPSU-620HX
|
| Product Name |

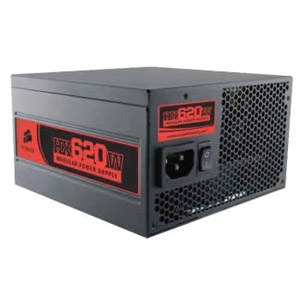

HX CMPSU-620HX ATX12V v2.2 and EPS12V 2.91 AC Power Supply
|
| Product Series |
HX
|
| Product Type |
ATX12V Power Supply
|
| Protection Type |
Over Current
Over Voltage
Over Power
Under Voltage
Short Circuit
|
| Receptacles |
8 x Serial ATA
1 x ATX12V
1 x ATX Motherboard
|
| Standard Warranty |
5 Year
|
| Version Support |
ATX12VEPS12V
|
1010179819
Corsair's DRAM memory modules all carry a lifetime warranty. The Flash Voyager, Flash ReadOut, TurboFlash, Flash Survivor and Mini Flash products all have a warranty for the expected normal life of the product (10 years). The Flash Padlock has a warranty of 3 years. The HX, TX, and VX Series of Power Supplies have a 5 year warranty, and Liquid Cooling products carry a one year warranty. In general, this means Corsair products are guaranteed to operate, as specified by their datasheet, and in the operating environment for which they were intended, for the life of the product or the extent of the warranty.
For additional information and technical assitance, please visit Corsair Memory's support site at:
http://www.houseofhelp.com/forums/forumdisplay.php?forumid=128
Corsair Technical Support
Phone: 1-800-205-7657
