> > > Corsair Professional HX650W 650W ATX 12V 52A 24PIN ATX Modular 80PLUS Sliver Power Supply Active (11180AC9616)

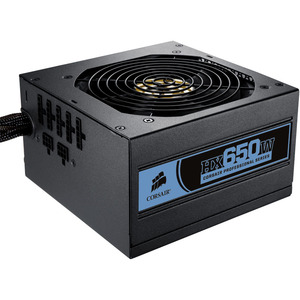

Corsair Professional HX650W 650W ATX 12V 52A 24PIN ATX Modular 80PLUS Sliver Power Supply Active

Other products from CORSAIR | (3 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available (only 10 left)

Details:

Shipping Weight: 7.5 lbs

SKU #:(11180AC9616)

Mft. Part #: CMPSU-650HX

Specifications
Quick Specs:
Compatibility

CPU:

  • Dual Core
  • Quad Core
Efficiency 85%
Input Voltage 110 V AC 220 V AC
Output Power 650 W
Limited Warranty 7 Year
Output Voltage 3.3 V DC @ 24 A 5 V DC @ 30 A 12 V DC @ 52 A -12 V DC @ 800 mA 5 V DC @ 3 A
Weight (Approximate) 3 lb
Height 4"
Width 4"
Depth 6"
Number of Fans 1
Green Compliant Yes
Green Compliance Certificate/Authority 80 Plus Gold
ATI CrossFire Supported Yes
NVIDIA SLI Supported Yes

Brand Name    Corsair
Manufacturer    Corsair
Manufacturer Part Number    CMPSU-650HX
Manufacturer Website Address    http://www.corsair.com
Marketing Information

The Corsair Professional HX650W modular power supply delivers 650 Watts of clean, continuous power. Flat, low-profile modular cables allow for easy cable routing and increased airflow. The high-efficiency design reduces electricity usage and minimizes heat generation.

The Corsair Professional HX650W is ideal for performance enthusiasts for whom consistent delivery of rated power output is essential. It delivers continuous rated power at ambient temperatures of up to 50° C. An intelligent fan speed system regulates the ultra-quiet 120mm double ball bearing fan. 105° C rated industrial-grade capacitors provide uncompromised performance and reliability. It's fully compatible with the ATX12V v2.2 and EPS12V 2.91 standards and backward compatible with ATX12V 2.01 systems.


Product Line    Professional
Product Model    CMPSU-650HX
Product Name    Professional CMPSU-650HX ATX12V & EPS12V Power Supply
Product Series    HX
Product Type    ATX12V & EPS12V Power Supply
Receptacles    1 x 20+4pin ATX Motherboard
4-pin ATX12V Motherboard
8-pin EPS12V Motherboard
4 x 6-pin PCI-E
4 x 8-pin PCI-E
9 x Serial ATA
Additional Information

Input Current: 10A


Compatibility

CPU:

  • Dual Core
  • Quad Core

Green Compliance Certificate/Authority    80 Plus Gold
Green Compliant    Yes
Depth    6" (152.4 mm)
Height    4" (101.6 mm)
Weight (Approximate)    1.36 kg
Width    4" (101.6 mm)
Input Voltage    110 V AC
220 V AC
Input Voltage Range    90 V AC to 264 V AC
Output Power    650 W
Output Voltage    3.3 V DC @ 24 A
5 V DC @ 30 A
12 V DC @ 52 A
-12 V DC @ 800 mA
5 V DC @ 3 A
MTBF    100000 Hour
ATI CrossFire Supported    Yes
Efficiency    85%
Number of Fans    1
NVIDIA SLI Supported    Yes
Power Factor Correction (PFC)    Active
Protection Type    Over Voltage
Over Power
Under Voltage
Short Circuit
Over Current
Limited Warranty    7 Year
1013917916
Customer Reviews

Reviewed by MM2010118557 at @ 03:21 PM Aug 12, 2012

I highly recommand it.

Reviewed by DT2010093737 at @ 11:18 AM Aug 14, 2010

Great PSU, 52Amp track? wow.
Comes very well packed and with a nice tote for the extra wires. I have this in my Gaming Desktop and works great:

AMD X6 1090t 3.2Ghz
2 Caviar Black 1Tb in Raid 0
XFX Black Edition HD5850
2 DVD lightscribes
3 huge 230MM fans with LED's
4 Gb DDR3 1800Mhz (G.Skill Flare cl7-8-7-24) with RAM fans(2)+ led)
Gigabyte 890X motherboard SATA3 DDR3 USB 3.0
Cooler Master HAF922 case

Enough for all that, when they say "you're better go with a smaller
quality part than a bigger cheap part"
Well this baby is the Quality part !!!

Reviewed by ds2010080111 at @ 02:42 PM Mar 10, 2010

if you don't need more power, it's the perfect power supplie for most demanding people.
short for crossfirex,
beautiful look, very quiet.
come with bag for the exceded cord
