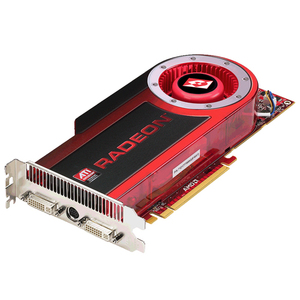

Diamond Radeon HD 4870 512MB GDDR5 PCI-E 2XDVI-I Video Card

Other products from DIAMOND | (4 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 3 lbs

SKU #: (11340BD3111)

Mft. Part #: 4870PE5512

HardwareWiki.org Info


  • Superscale unified shader architecture
  • PCI Express 2.0 support
  • 800 Unified Stream Processors
  • 256-bit memory interface
  • Direct X 10.1 / Shader Model 4.1 / OpenGL 2.0
  • ATI Crossfire X Multi-GPU Support for highly scalable performance
  • Up to four GPU support with an AMD 790FX based motherboard
  • High-speed 128-bit-HDR (High Dynamic Range) rendering
  • Up to 24x Custom Filter Anti-Aliasing
  • 55nm process technology
  • ATI Avivo HD Video and Display Technology
  • Game Physics processing capability
  • Up to 24X Custom Filter Anti-Aliasing
  • Built-in HDMI with Multi-channel 5.1 surround audio
  • Support for the ATI Radeon DVI to HDMI adapter
  • Unified Video Decoder (UVD) for Blu-ray
  • ATI PowerPlay energy conserving technology
  • RoHS compliant
  • Build in HDCP Support
  • Windows Vista? 3D environment Support

    Optimized for Windows Vista? with comprehensive DirectX® 10.1 and DirectX® 9 support

    ATI Avivo? HD Video and Display Technology
  • Built-in HDMI with Multi-channel 5.1 surround audio
  • Two Dual Link DVI with full resolution HDCP support
  • HD video playback
  • Full 30-bit display processing
  • CATALYST Software Drivers
  • Windows Vista? 3D environment Support
  • Support ATI Radeon? DVI-I to HDMI adapter

  • Analog Signal    Yes
    API Supported    DirectX 10.1
    OpenGL 2.1
    Brand Name    DIAMOND
    Bus Width    256 bit
    Chipset Line    Radeon
    Chipset Manufacturer    ATI
    Chipset Model    4870
    Chipset Series    HD 4000
    Digital Signal    Yes
    Dual Link DVI Supported    Yes
    DVI    Yes
    HDCP Supported    Yes
    Host Interface    PCI Express 2.0 x16
    Manufacturer    Diamond Multimedia, USA
    Manufacturer Part Number    4870PE5512
    Manufacturer Website Address    www.diamondmm.com
    Marketing Information

    Redefine HD Gaming The ATI Radeon HD 4870 delivers a cinematic gaming experience with unprecedented performance. The powerful new TeraScale graphics will propel you deep into your gameplay with seamless frame rates and high resolutions. Enhanced anti-aliasing (AA) and anisotropic filtering create striking graphics with unparalleled realism so you can max out the settings of the most demanding next-generation games or revitalize your favorite titles. Play today while preparing for tomorrow with tessellation, support for DirectX 10.1 and scalable ATI CrossFireX technology.

    Maximum Resolution    2560 x 1600
    Memory Speed    1800 MHz
    Memory Technology    GDDR5 SDRAM
    Multi-GPU Technology    CrossFireX
    Number of DVI Outputs    2
    Number of Monitors Supported    2
    Number of Stream Processors    800
    Package Contents
  • Viper Radeon HD 4870 Graphics Card
  • Quick start guide
  • DVI-TO-VGA adapter
  • S-Video cable
  • CrossFire bridge interconnect
  • Component HDTV adapter
  • Installation CD
  • Diamond warranty card
  • DVI-TO-HDMI adapter

  • Package Type    Retail
    Platform Supported    PC
    Processor Speed    750 MHz
    Product Line    Viper
    Product Name    Viper Radeon HD 4870 Graphics Card
    Product Type    Graphic Card
    RAMDAC Speed    400 MHz
    Shader Model    4.1
    Standard Memory    512 MB
    Standard Warranty    1 Year Limited
    System Requirements
  • Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+ or higher System CPU
  • 2.0 Ghz or faster CPU Speed
  • 1024MB System Memory
  • 450 Watt or greater power supply with 75 Watt 2 x 6-pin PCI Express power connector recommended
  • PCI Express based PC is required with one x16 lane graphics slot available on the motherboard
  • 450 Watt or greater power supply with 75 Watt 6-pin PCI Express power connector recommended (550 Watt and two 6-pin connectors for dual ATI CrossFireX) Certified power supplies are recommended
  • Installation software requires an optical drive
  • DVD playback requires DVD drive, Blu-ray playback requires a Blu-ray drive
  • For a complete ATI CrossFireX system, additional ATI Radeon HD 4870 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per board is required
  • 400 MB Hard Disk Space
  • Double Available Slot
  • ATX Chassis
  • Digital flat-panel (DFP) displays or DVI-I Compatible or digital CRT display or High-resolution VGA monitor
  • Operating System:

  • Microsoft Windows Vista 32 Bit
  • Microsoft Windows Vista 64 Bit
  • Microsoft Windows XP
  • Microsoft Windows XP 64 Bit
  • Microsoft Windows 2003
  • Microsoft Windows MCE

  • 1011761850
    Customer Reviews

    Reviewed by TC2010051058 at @ 12:50 AM Aug 07, 2008

    amazing value!!! This video card has exceeded my expectations!

    I have been unable to find any difference between the Diamond brand 4870 and other brands of the same card. I read that they are manufactured in different plants but they all follow the exact same plans from ATI. each brand produces an identical card, so go for the cheapest!

    Reviewed by PG2010051341 at @ 07:02 AM Jul 28, 2008

    Buy this card and put in crossfire if you have the money! Don't buy an nvidia's garphics card!

    Reviewed by KW2010027292 at @ 08:50 AM Jul 26, 2008

    This is an amazing card, at first i was skeptical but now that the new drivers 8.7 came out the card is just screaming. In age of conan it runs at 50+fps no matter where! That is the only game that taxes this card. Crysis at 1680x1050 runs at 60fps with no AA but on Very High!
    Buy this card!!! You will not regret it!
