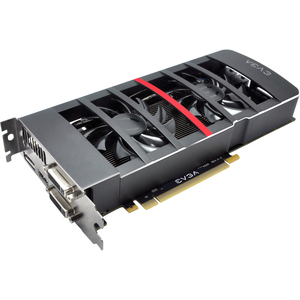

EVGA GeForce GTX 570 HD Doubleshot Fermi 732MHZ 1280MB GDDR5 2XDVI HDMI DisplayPort PCI-E Video Card

Other products from EVGA | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 2.4 lbs

SKU #: (11610BD6002)

Mft. Part #: 012-P3-1577-KR

HardwareWiki.org Info
Analog Signal    Yes
API Supported    DirectX 11.0
OpenGL 4.1
DirectCompute 5.0
Brand Name    EVGA
Bus Width    320 bit
Chipset Line    GeForce
Chipset Manufacturer    NVIDIA
Chipset Model    GTX 570
Chipset Series    GTX 500
Digital Signal    Yes
DisplayPort    Yes
Dual Link DVI Supported    Yes
DVI    Yes
Features    CUDA Technology
PureVideo HD Technology
3D Vision Surround Ready
HDCP Supported    Yes
HDMI    Yes
Height    4.4"
Host Interface    PCI Express 2.0 x16
Length    9.0"
Manufacturer    EVGA Corporation
Manufacturer Part Number    012-P3-1577-KR
Manufacturer Website Address    www.evga.com
Marketing Information

Introducing the EVGA GeForce GTX 570. Enjoy blistering fast DirectX 11 performance, including tessellation performance that destroys the competition. Experience a whole new level of interactive gaming with SLI and combine up to three displays for the ultimate in 3D entertainment. And as you have come to expect from the GeForce GTX GPU, the GTX 570 packs support for all the premium GTX gaming technologies such as NVIDIA Surround, 3D Vision, PhysX and SLI. With these features and more, the EVGA GeForce GTX 570 gives you more than one way to elevate your experience.

Maximum Resolution    2560 x 1024
Memory Speed    3800 MHz
Memory Technology    GDDR5 SDRAM
Multi-GPU Technology    SLI
Number of DisplayPort Outputs    1
Number of DVI Outputs    2
Number of HDMI Outputs    1
Number of Stream Processors    480
Package Contents
  • GeForce GTX 570 DS HD Graphics Card
  • 1 x DVI to VGA Adapter
  • 2 x 6-pin PCI-E Power Cables
  • User Guide
  • Disc

  • Processor Speed    732 MHz
    Product Model    012-P3-1577-KR
    Product Name    GeForce GTX 570 DS HD Graphics Card
    Product Type    Graphic Card
    RAMDAC Speed    400 MHz
    Software Included
  • Driver
  • EVGA Precision Tuning Utility

  • Standard Memory    1.28 GB
    Standard Warranty    3 Year Limited
    System Requirements
  • 550 watt or greater power supply with a minimum of 38 amps on the 12 volt rail
  • PCI Express or PCI Express 2.0 complaint motherboard with one x16 graphics slot
  • Two 6-pin PCI Express power connectors or four available hard disk power connectors
  • Operating System(s):

  • Windows 7 32/64bit
  • Windows Vista 32/64bit
  • Windows XP 32/64bit

  • Weight (Approximate)    3.00 lb
