Home > Video Cards > EVGA > EVGA E-GEFORCE 9800GTX+ 738MHZ 512MB 2.2GHZ GDDR3 PCI-E Dual DVI-I HDCP HDTV Out Video Card (11610BD9780)


Other products from EVGA | (4 customer reviews)

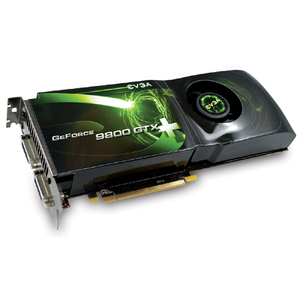

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 3 lbs

SKU #: (11610BD9780)

Mft. Part #: 512-P3-N873-AR

HardwareWiki.org Info
Key Features
NVIDIA 2-way and 3-way SLI Ready
Next-Generation Superscalar GPU Architecture
NVIDIA unified architecture with GigaThread technology
Full Microsoft DirectX 10 Shader Model 4.0 support
16x full-screen anti-aliasing
True 128-bit floating point high dynamic-range (HDR)
NVIDIA Quantum Effects physics processing technology

Other Features
nView Multi-Display Technology
High-Speed GDDR3 Memory Interface
NVIDIA PureVideo Technology, NVIDIA PhysX Ready, NVIDIA CUDA technology
OpenGL 2.1 Optimizations and Support
NVIDIA UltraShadow II Technology
Dual Dual-Link TMDS Connector
Built for Microsoft Windows Vista

Additional Information
  • NVIDIA Quantum Effects physics processing technology
  • nView Multi-Display Technology
  • NVIDIA PureVideo Technology
  • NVIDIA UltraShadow II Technology

  • Analog Signal    Yes
    API Supported    DirectX 10.0
    Brand Name    EVGA
    Bus Width    256 bit
    Chipset Line    GeForce
    Chipset Manufacturer    NVIDIA
    Chipset Model    9800 GTX+
    Chipset Series    9
    Digital Signal    Yes
    Dual Link DVI Supported    Yes
    DVI    Yes
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    HDCP Supported    Yes
    Height    4.4"
    Host Interface    PCI Express 2.0 x16
    Length    10.5"
    Manufacturer    EVGA Corporation
    Manufacturer Part Number    512-P3-N873-AR
    Manufacturer Website Address    www.evga.com
    Marketing Information

    e-GeForce 9800GTX+ Graphics Card have attained "Certified for Windows Vista". e-GeForce 9800GTX+ Graphics Card have passed rigorous testing and take full advantage of Microsoft Windows Vista.

    Maximum Resolution    2560 x 1600
    Memory Speed    2200 MHz
    Memory Technology    GDDR3 SDRAM
    Multi-GPU Technology    SLI
    Number of DVI Outputs    2
    Number of Monitors Supported    2
    Number of Stream Processors    128
    Package Type    Retail
    Platform Supported    PC
    Processor Speed    738 MHz
    Product Name    e-GeForce 9800 GTX+ Graphics Card
    Product Type    Graphic Card
    RAMDAC Speed    400 MHz
    Shader Clock    1836 MHz
    Shader Model    4.0
    Standard Memory    512 MB
    Standard Warranty    Lifetime Limited
    System Requirements
  • Minimum of a 450 Watt power supply (Minimum recommended power supply with +12 Volt current rating of 24 Amps.)
  • Minimum 550 Watt for SLI mode system (Minimum recommended power supply with +12 Volt current rating of 30 Amps.)
  • Operating System:

  • Microsoft Windows Vista

  • 1011877541
    Customer Reviews

    Reviewed by Optix at @ 07:42 AM Oct 08, 2008

    So far, so good. It installed no problem although I had to rearrange my hard drives to account for the length of the card but that is not a true knock against the card itself.

    Under full load while overclocking and scanning for artifacts using ATI Tool the temperature stays at a cool 52 degrees with the fan at 80%. Beyond 80% and it becomes a bit audible but only because of the sound of air moving, not from the sound of the fan itself. Normal users who have no intention of overclocking will have a nearly silent video card.

    The highest overclock that I have been able to run with 100% stability is 837mhz on the core and 1215mhz (2.53Ghz effective) on the memory but some reviews show it going as high as 850mhz and 1300mhz respectively.

    I'm extremely pleased with the card and am happy to sacrifice a bit of performance when compared to the 4850 in exchange for a lifetime warranty that is overclocker and modder friendly.

    Reviewed by RD2010046734 at @ 07:48 PM Sep 01, 2008

    Great card for the price you pay and even moreso with the new implementation of the PhysX drivers. The cooling solution found on this card as opposed to that of the stock (standard) 4850 provides you with an exhaust feature which will keep the internal ambient temperatures down to a minimum rather than to recycle warm air. The warranty offered by EVGA is also lifetime and is aftermarket-friendly if you wish to replace the cooling without fear of voiding the warranty.

    Even though this board sports a 55NM GPU, it requires roughly 30 Watts of extra power compared to that of its 55NM brother, the ATI 4850, at idle and will stay roughly the same under load. While this is nothing to write home about, it is something to take into consideration in regards to (not counting amps) properly predicting what kind of power supply you will need. It is also a fairly long card which can be cumbersome to some and especially those who have a cluttered case.

    Reviewed by AK2010040340 at @ 04:32 PM Sep 01, 2008

    This card is dumb if you ask me...it uses 2 pcie power plugs, with those u can do 4850 crossfirex...or just get 1 4850 and it beats it and only uses 1 pcie 6pin and it outperforms it...uses less power too :)

    Submit your review | View more reviews
