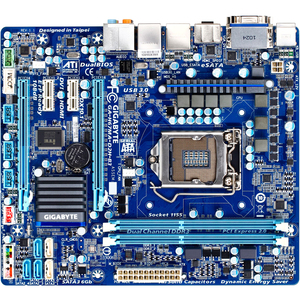

Gigabyte H67MA-D2H-B3 mATX LGA1155 H67 DDR3 2PCI-E16 2PCI-E1 SATA3 USB3.0 HDMI Motherboard

Other products from GIGABYTE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 3 lbs

SKU #: (11830BD1454)

Mft. Part #: GA-H67MA-D2H-B3

HardwareWiki.org Info
Specifications
Next Generation High Quality Components and 4 Phase CPU Power Design
GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU. The GIGABYTE Ultra Durable™ 2 design utilizes All Solid Capacitors manufactured in Japan which are rated to last for at least 50,000 hours in operational use. GIGABYTE Ultra Durable™ 2 motherboards also feature Ferrite Core Chokes with higher energy efficiency compared to more common iron core chokes and Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat. Some motherboards in this segment feature the GIGABYTE Ultra Durable™ 2 Classic design, which features All Solid Japanese manufactured Capacitors and Lower RDS(on) MOSFETs. To see which technology your motherboard features, please visit the model list at the top of the page.
GIGABYTE has further improved on the CPU VRM area by increasing the power phases from 3 to a 4 phase design. This allows for more stable power delivery to the CPU, as well as help smooth out power ripple and noise which is important for clean CPU power delivery.
New 100% Hardware VRD 12 Compliant CPU Power Design



GIGABYTE 6 series motherboards incorporate an Intel® approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller – hence, delivering a more energy efficient platform.
Intel HD Graphics support
108dB Signal-to-Noise ratio playback
GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards.
All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.
DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)
Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update  using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.
50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85? ambient temperature.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
Note: Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
On/Off Charge Driver download
SuperSpeed USB 3.0
GIGABYTE Ultra Durable™ 3 motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.


Turbo USB3.0 – Boosts Performance by Up To 10%

When GIGABYTE's Turbo USB3.0 feature is enabled, it provides the fastest possible USB3.0 performance by allocating PCIe lanes to directly connect the CPU and USB 3.0 controller chip. This provides approximately 10% better performance than when it is disabled and USB 3.0 traffic is directed through the chipset.
Note: Turbo USB 3.0 utilizes 8 PCIe VGA lanes, so it is only possible to enable it with a single graphics card running at PCIe x8 on P67 chipset motherboards, or while using Intel® HD Graphics from the CPU (i.e. no VGA card) on H67 chipset motherboards. It is an option for high bandwidth users.
SATA 6 Gbps
GIGABYTE Ultra Durable™ 3 motherboards are High-Speed SATA Revision 3.0 compatible, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, they offer even faster data transfer rates of up to a theoretical 4x the speed of current SATA interfaces.
3x USB Power Boost
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Turbo XHD- Full Automatic RAID 0
GIGABYTE Turbo XHD provides a quick and easy way to boost your hard drive performance by automatically detecting 2 new SATA3 HDDs and enabling users to effortlessly set up a RAID 0 configuration via an easy to use utility. RAID 0 boosts HDD performance by up to 4X.
Turbo XHD function only enabled for the SATA controllers integrated in the Intel P67/H67 Chipset.
Dynamic Energy Saver™ 2
GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
DVI Support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).
Multi-display support with ATI CrossFireX™
ATI® CrossFireX™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Smart 6 – Smarter PC system Management


Smart QuickBoot
Speeds up booting times.

Smart DualBIOS
Smart personal reminder of PC passwords.
Smart QuickBoost*
One-click Overclocking
Smart Recorder
Your PC's Watch Dog
Smart Recovery 2
Allows you to go back in time on your PC and retrieve lost files
Smart TimeLock
Time Controller for your PC.

* Whether SMART QuickBoost is supported depends on the motherboard model.
Cloud OC

GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control...more
Cloud OC download

Hotkey OC
GIGABYTE Hotkey OC allows users to create  and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. For example, when running 3DMark 06, the 1st profile might be optimized for graphics, and can be used for the first two graphics tests, then, the next two tests can utilize the 2nd profile which might be optimized for CPU tests, and one could jump back to the 1st profile again for the final two graphics (shader) tests...more
Hotkey OC download
AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth® cell phone is out of range of your computer.
Note: GIGABYTE motherboards do not include a Bluetooth® receiver; the addition of a 3rd party Bluetooth receiver is required.
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.


64-bit Processing    Yes
Audio Channels    7.1
Audio Line In    Yes
Audio Line Out    Yes
Brand Name    Gigabyte
Chipset Manufacturer    Intel
Chipset Model    H67 Express
Controller Type    Serial ATA/300
Serial ATA/600
Depth    8.3"
DVI    Yes
eSATA    Yes
Form Factor    Micro ATX
Gigabit Ethernet    Yes
Graphics Controller Manufacturer    Intel
HDMI    Yes
Manufacturer    GIGABYTE Technology, Inc
Manufacturer Part Number    GA-H67MA-D2H-B3
Manufacturer Website Address    www.giga-byte.com
Marketing Information    Next Generation High Quality Components and 4 Phase CPU Power Design

GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU. The GIGABYTE Ultra Durable™ 2 design utilizes All Solid Capacitors manufactured in Japan which are rated to last for at least 50,000 hours in operational use. GIGABYTE Ultra Durable 2 motherboards also feature Ferrite Core Chokes with higher energy efficiency compared to more common iron core chokes and Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat. Some motherboards in this segment feature the GIGABYTE Ultra Durable 2 Classic design, which features All Solid Japanese manufactured Capacitors and Lower RDS(on) MOSFETs. GIGABYTE has further improved on the CPU VRM area by increasing the power phases from 3 to a 4 phase design. This allows for more stable power delivery to the CPU, as well as help smooth out power ripple and noise which is important for clean CPU power delivery.


Maximum Memory    16 GB
Memory Standard    DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
DDR3-800/PC3-6400
Memory Technology    DDR3 SDRAM
Microphone Port    Yes
Multi GPU Supported    CrossFireX
Network (RJ-45)    Yes
Number of DVI Outputs    1
Number of HDMI Outputs    1
Number of Memory Slots    2
Number of Onboard USB 2.0 Ports    8
Number of PCI Express x1 Slots    2
Number of PCI Express x16 Slots    1
Number of PCI Express x4 Slots    1
Number of PS/2 Ports    1
Number of S/PDIF Out Ports    1
Number of SATA Interfaces    5
Number of Total Expansion Slots    4
Number of USB 2.0 Ports    4
Number of USB 3.0 Ports    2
Onboard Audio Header    Yes
Onboard LEDs Header    Yes
Onboard S/PDIF Header    Yes
Onboard Video    CPU Dependent Video
Package Contents
  • Ultra Durable 2 Desktop Motherboard
  • Motherboard Driver Disk
  • User's Manual
  • Quick Installation Guide
  • 2 x SATA Cables
  • I/O Shield

  • Power Supply Supported    ATX
    ATX12V
    Processor Socket    Socket H2 LGA-1155
    Processor Supported    Core i5
    Core i3
    Core i7
    Pentium
    Celeron
    Processor Technology    Turbo Boost Technology
    Enhanced SpeedStep Technology
    Product Line    Ultra Durable 2
    Product Model    GA-H67MA-D2H-B3
    Product Name    Ultra Durable 2 Desktop Motherboard
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    RAID Levels    0
    1
    5
    RAID Supported    Yes
    S/PDIF    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC889
    Total Number of Onboard USB Ports    8
    Total Number of PCI Express Slots    4
    Total Number of USB Ports    6
    Total Processor Supported    1
    VGA    Yes
    Width    9.6"
