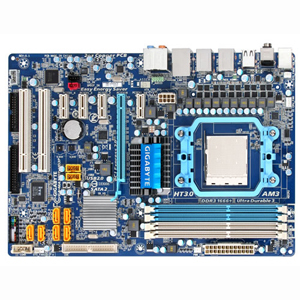

Gigabyte GA-MA770T-UD3P ATX AM3 DDR3 AMD770 PCI-E16 4PCI-E1 2PCI SATA GBLAN Motherboard

Other products from GIGABYTE | (3 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
View more product photos
Availability:

In Stock

Usually ships in 1 to 2 business days.

$9.99 Air Shipping

Details:

Shipping Weight: 4 lbs

SKU #: (11830BD2703)

Mft. Part #: GA-MA770T-UD3P

Our Price:

$85.05

Canadian Funds

Add to wish List

Tell a friend

More from GIGABYTE

More like this

Print page

Specifications | 3 Customer Reviews | Warranty Information | Sales Terms | Discuss in Forum
HardwareWiki.org Info
Specifications
Overview

  Introduction


The GA-MA770T-UD3P introduces revolutionary GIGABYTE Ultra Durable 3 technology on latest AMD socket AM3 platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 770 chipset, the GA-MA770T-UD3P supports new generation of 45nm AMD AM3 Phenom II series processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and PCI Express 2.0 graphics interface support. With the innovative GIGABYTE Easy Energy Saver technology, the GA-MA770T-UD3P is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
 EC AOD-ACC Support
EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through AMD OverDrive™ utility further than was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
 AMD OverDrive Support
The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).


Ultra Durable 3

GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE’s Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
 Benefits of 2 oz Copper PCB
  • Cooler than traditional motherboards
  • Enhanced durability
  • Improved energy efficiency
  • Greater margins for overclocking
  2X Lower Impedance

Doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.


Dual Channel DDR3 1666+ MHz
Delivering native support for DDR3 memory up to 1666MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* DDR3 1666+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
 Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging....more.
 Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency....more.
 50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games....more.


* 50000 hours of work time is calculated at 85? ambient temperature.


GIGABYTE innovative technology- Easy Energy Saver
GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient 45nm AM3 CPU, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
 EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.


DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
 Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With Vista Premium support, GIGABYTE AMD motherboards offer a fresh and unique desktop experience that will be more informative, intuitive and completely new


Additional Information
  • DDR3 1666MHz is an overclock speed

    • BIOS:

  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support DualBIOS
  • PnP 1.0a
  • DMI 2.0
  • SM BIOS 2.4
  • ACPI 1.0b


    • Audio Channels    7.1
    Back Panel Interfaces    1 x mini-DIN Keyboard
    1 x mini-DIN Mouse
    8 x Type A USB 2.0 USB
    2 x IEEE 1394a FireWire
    1 x RJ-45 Network
    1 x Toslink S/PDIF Out
    1 x S/PDIF Out
    1 x Mini-phone Audio Line In
    4 x Mini-phone Audio Line Out
    1 x Mini-phone Microphone
    Brand Name    GIGA-BYTE
    Chipset Manufacturer    AMD
    Chipset Model    770
    Dimensions    12" Width x 8.27" Depth
    Expansion Slots    1 x PCI Express x16
    4 x PCI Express x1
    2 x PCI
    Floppy Controller    Yes
    Form Factor    ATX
    Front Panel Interfaces    1 x HDD LED
    1 x Power LED
    1 x On/Off Switch
    1 x Reset Switch
    2 x USB Header
    1 x CD-in/Aux-in Connector
    1 x S/PDIF In
    1 x S/PDIF Out
    1 x Chassis Intrusion Switch
    1 x COM1
    1 x Parallel Port Header
    1 x Audio Header
    Gigabit Ethernet    Yes
    Green Compliance    Yes
    Green Compliance Certificate/Authority    RoHS
    WEEE
    HyperTransport    2600 MHz
    1000 MHz
    IDE Controller    Yes
    IDE Standard    Ultra ATA/133 (ATA-7)
    Manufacturer    GIGA-BYTE TECHNOLOGY CO
    Manufacturer Part Number    GA-MA770T-UD3P
    Manufacturer Website Address    http://www.giga-byte.com
    Marketing Information

    The GA-MA770T-UD3P introduces revolutionary GIGABYTE Ultra Durable 3 technology on latest AMD socket AM3 platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance.


    Maximum Memory    16 GB
    Memory Standard    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    Memory Technology    DDR3 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    6
    Processor Socket    AM3
    Processor Support    Phenom II X4
    Phenom II X3
    Processor Technology    HyperTransport Technology
    Product Model    GA-MA770T-UD3P
    Product Name    Ultra Durable 3 GA-MA770T-UD3P Desktop Board
    Product Series    Ultra Durable 3
    Product Type    Desktop Board
    RAID Controller    Yes
    RAID Levels    0
    1
    0+1
    1+0
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC888
    Total Processor Support    1
    1013212697
    Customer Reviews

    Reviewed by GH2010054377 at @ 10:15 AM Dec 02, 2009

    Since I couldn't edit my earlier review, here's another.

    Disregard the DOA comment on my previous review.
    I gave it another go & it turned out I didn't have the CPU 100% snug into the socket. Reinstalled all the components & it's working just fine.

    Next step is to try to unlock those extra cores on the 550

    Reviewed by GH2010016738 at @ 01:25 PM Nov 30, 2009

    Bought this board for a budget build for myself for Christmas.

    Got everything connected, and everything powered on ok, but I had no video output.
    Checked all the vid card connections & made sure it was seated correctly but still no go.
    Tried removing all components except the basics then when I hit the power switch there was a pop & a flash & then a burning smell. Didn't see any burn marks on the board, but something died so will RMA & try my luck with a replacement.
    Hopefully it gets here before Christmas.

    Also purchased the DDR2 version of this board for my stepson at the same time. Here's hoping I have more luck with that one.

    Will update  review when the replacement board gets here.

    Reviewed by SB2010074521 at @ 10:38 AM Jul 14, 2009

    This a great motherboad.

    Out of the box, I was amazed at how solid and sturdy it felt. Its part of the 3oz Copper board Gigabyte technologie but I didn't expect it to feel that robust.

    The Board layout was very conveniant to work with.

    The Bios is a pleasure to work with. Everything was well layed out. Bonus for providing the ability to unlock the phenoms X2 and X3 from the ACC utility.

    For overclockers, this board was very easy to work with. It provides every tools too achieve maximum overclock. It has dual boot for added security and when the limit is reached, it reboots very well and revert to the last stable settings.


    2 slight negatives.

    Its a budget board so it doesn't provide 2 X16 PCI slots.
    On my board, the sound chip produced some random noises. That could be specific to my specific board as I have heard very good reviews of this sound chip. Luckily, I have an old PCI sound card that I can throw in to replace the on-board chip.
