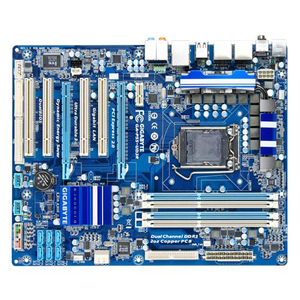

Gigabyte P55-UD3R ATX LGA1156 P55 DDR3 2PCI-E 4PCI SATA2 RAID Sound GLAN Motherboard

Other products from GIGABYTE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
View more product photos
Availability:

Not Available

Details:

Shipping Weight: 5 lbs

SKU #: (11830BD4091)

Mft. Part #: GA-P55-UD3R

Our Price:

$151.20

Canadian Funds

Add to wish List

Tell a friend

More from GIGABYTE

More like this

Print page

Specifications | 0 Customer Reviews | Warranty Information | Sales Terms | Discuss in Forum
HardwareWiki.org Info
Specifications

  Ultra Durable 3

Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more
  Benefits of 2 oz Copper PCB



• Cooler than traditional motherboards
• Enhanced durability
• Improved energy efficiency
• Greater margins for overclocking... more
  Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.


Smart QuickBoot
No more waiting for PC Boot up

 Smart DualBIOS
Smart personal reminder
Smart QuickBoost
One-click Overclocking		 Smart Recorder
Your PC's Watch Dog
Smart Recovery
Reverse time for you		 Smart TimeLock
Time Controller for PC
  Windows® 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft® for an Intel-based motherboard, setting the standard for future Windows 7 certified motherboards...more
 Dynamic Energy Saver™ 2
GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
  Intel® Core i7/ Core i5 LGA 1156 Processors



The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel® Core™ i7/ Core™ i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel® Core™ i7/ Core™ i5 processors provide the overwhelming performance with optimized power efficiency.
  DDR3 2200+ Support
P55-UD3R support Intel Core™ i7/ Core™ i5 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE, Intel Core™ i7/ Core™ i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
* Please refer "Memory Support List" for memory support information
 XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
 AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer
 Norton™ Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.


64-bit Processing    Yes
Additional Information
  • Support for an Intel Core i5 series processor
  • Support for DDR3 2200MHz memory modules

    • BIOS:

  • 2 x 16 Mbit flash
  • Use of licensed Award BIOS
  • Support for DualBIOS
  • PnP 1.0a
  • DMI 2.0
  • SM BIOS 2.4
  • ACPI 1.0b


    		•
    Audio Channels    7.1
    Back Panel Interfaces    1 x mini-DIN Keyboard/Mouse
    1 x RJ-45 Network
    1 x Toslink S/PDIF Out
    1 x S/PDIF Out
    1 x Mini-phone Audio Line In
    1 x Mini-phone Microphone
    4 x Mini-phone Audio Line Out
    10 x Type A USB 2.0 USB
    Brand Name    GIGA-BYTE
    Chipset Manufacturer    Intel
    Chipset Model    P55 Express
    Dimensions    9.61" Width x 12" Depth
    Expansion Slots    2 x PCI Express x16
    1 x PCI Express x1
    4 x PCI
    Floppy Controller    Yes
    Form Factor    ATX
    Front Panel Interfaces    1 x HDD LED
    1 x Power LED
    1 x On/Off Switch
    1 x Reset Switch
    1 x Audio Header
    1 x CD-in/Aux-in Connector
    1 x S/PDIF In
    1 x S/PDIF Out
    2 x USB Header
    1 x COM1
    1 x Parallel Port Header
    Gigabit Ethernet    Yes
    Green Compliance    Yes
    Green Compliance Certificate/Authority    WEEE
    RoHS
    IDE Controller    Yes
    IDE Standard    Ultra ATA/133 (ATA-7)
    Manufacturer    GIGA-BYTE TECHNOLOGY CO
    Manufacturer Part Number    GA-P55-UD3R
    Manufacturer Website Address    http://www.giga-byte.com
    Maximum Memory    16 GB
    Memory Standard    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    DDR3-800/PC3-6400
    Memory Technology    DDR3 SDRAM
    Multi GPU Support    CrossFireX
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    10
    Processor Socket    Socket 1156
    Processor Support    Core i7
    Processor Technology    Enhanced SpeedStep Technology
    Product Model    GA-P55-UD3R
    Product Name    GA-P55-UD3R Desktop Board
    Product Type    Desktop Board
    RAID Controller    Yes
    RAID Levels    0
    1
    5
    1+0
    JBOD
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC888
    Total Processor Support    1
    1013917942
    Customer Reviews

    Submit your review

    Manufacturer's Warranty Contact Information

    Currently Gigabyte accepts end users’ requests on RMA service.
    Motherboards, Video cards, servers and Rackmount server boards carry three years limited warranty.

    Warranty Effective On Date of Manufacture

    Gigabyte determines warranty based on the manufacture date. The manufacture date can be verified by the serial number found on the product. The first four digits after "SN" determine the year and week of manufacturing date. For example:

    "01)04719331729028(21) SN0213030585" represents the 13th week of 2002

    RMA Request Procedures and Guidelines

    • All RMA request forms must be completed in order to obtain a RMA number

    • RMA request with missing or incorrect serial number(s) may result in a delayed process or a rejection of request

    • Any model discrepancy for received items may result in a delayed processing timeProducts received with no RMA number may delay processing or refusal
      (Gigabyte will not be responsible for items received without proper information)

    • No cross shipping or advanced replacements under any circumstances

    • Products will either be repaired or replaced at our discretion

    • Replacements may include new or refurbished products
      (Replacements will be for the exact or equivalent product)
    • Average turnaround time will be 2-3 business working weeks upon receipt (applies to quantities not exceeding 20 pieces)
    • If the information on your request varies from the actual item(s) received, RMA will be based on the actual item(s) received
    • RMA numbers will be valid for 30 days after issued date
    • Gigabyte will provide one way freight via UPS or FedEx ground free of charge
    • For consecutive violation for No Trouble Found (NTF), a testing fee per NTF board or system may apply.

    Warranty Period by Product

    • Motherboards
      • All motherboards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
    • Graphic Accelerator Cards (VGA)
      • All graphic cards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
    • Servers(Server Boards/Barebone Server System)
      • Server Boards carry a 3 years limited warranty (First 2 years parts & labor, 3rd year labor only)
      • Rackmount server boards carry a 3 year limited warranty (First 2 years parts and labor, 3rd year labor only)
      • Rackmount components carry a 2 year limited warranty
    • PC Barebones System
      • Motherboards assembled with barebones systems carry a 3 years limited warranty (1st year parts & labor, 2nd and 3rd year labor only)
        * Gigabyte shall provide the fees/charges for parts upon testing of motherboards in their 2nd and 3rd year of warranty
    • Peripherals (Coolers, Keyboards, Mouse, Optical Devices, etc.)
      • All peripherals carry a 1 year limited warranty
    • Notebook
      • All notebooks carry a 1 year limited warranty
    • Wireless and Networking Products
      • All wireless and networking products carry a 1 year limited warranty

    Please register at http://rma.gigabyte-usa.com/DirectRMA/EndUser_Main.asp for your RMA account!

    Sales & Customer Satisfaction Policy

    Merchandise sold by DirectCanada.com carries a limited 15-day customer satisfaction policy and a limited 30-day DOA (dead-on-arrival) policy, from the original invoice date, and is subject to the following terms and conditions:

    1. ALL merchandise requires an RMA number (Return Merchandise Authorization) issued by DirectCanada.com for return. RMA numbers are valid for 7-days with a small leeway for shipping times. Merchandise returned to us without a valid RMA number will be refused and shipped back to the customer at the customer's expense. Please allow 5 to 10 business days for testing and refunds to be processed.
    2. Returned merchandise must NOT be physically damaged, including damage due to improper installation or overclocking. This includes any physical alteration to the product, modifications not approved by the manufacturer, bent pins, etc. No returns, refunds or exchanges for any special order products, Notebooks, PDAs, Televisions, Retail Box Software, OEM Software, Computer Games, Video Games, DVDs, CDs, or any products marked as "no returns" or carries a similar description on the products' page. All products are eligible for original manufacturer's warranties. Please contact the manufacturer directly. All fees, including "shipping and handling", insurance coverage fees, and "Rapid Replacement" fees are non-refundable.
    3. UNOPENED merchandise (not including special orders or merchandise labeled "No Returns" or similar language) can be returned within 15-days under our customer satisfaction policy for a full refund, based on the current market price of the product, if the current market price is lower.
    4. OPENED merchandise WITHOUT original packaging or materials is not eligible for return. OPENED merchandise WITH original packaging and materials may be eligible for return within our 15-day customer satisfaction policy and will be subject to a 15% restocking fee. Any returns MUST include all original parts and packing materials, or the RMA will be rejected.
    5. LCD monitors and other products with LCD displays (i.e.: notebooks, cameras, etc.) adheres to the dead-pixel policy that been established by most of the manufacturers. Any product with an LCD screen must be a minimum of 7 (seven) dead LCD pixels to be considered defective. Please contact the manufacturer of the product for additional warranty information if you receive a product with less than 7 dead pixels.

    All product warranty coverage after 30-days will be handled directly by the product manufacturer. DirectCanada.com reserves the right to refuse any returns or refunds for merchandise.



    Prices, specification and terms of offers are subject to change without notice. While we make every effort to verify the accuracy of the product information posted, DirectCanada.com is not responsible typographical and/or photographic errors. DirectCanada.com reserves the right to change our terms and conditions at any time without notice.
