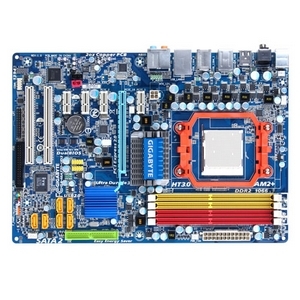

Gigabyte GA-MA770-UD3 ATX AM2+ AMD770 DDR2 PCI-E16 2PCI SATA2 RAID 1394 HD Sound GBLAN Motherboard

Other products from GIGABYTE | (5 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
View more product photos
Availability:

In Stock

Usually ships in 1 to 2 business days.

$9.99 Air Shipping

Details:

Shipping Weight: 5 lbs

SKU #: (11830BD4096)

Mft. Part #: GA-MA770-UD3

Our Price:

$70.51*

Canadian Funds

MIR. Savings: $10.00
Your Price: $80.51

Price vaild until July 31th.

*After $10.00 mail in rebate

Add to wish List

Tell a friend

More from GIGABYTE

More like this

Print page

Specifications | 5 Customer Reviews | Warranty Information | Sales Terms | Discuss in Forum
HardwareWiki.org Info
Specifications
 Overview

 Introduction


The GA-MA770-UD3 introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 770 chipset, the GA-MA770-UD3 supports AMD Phenom™ quad-core processors, integrated DDR2 memory controller, HyperTransport™ 3.0 technology links and PCI Express 2.0 graphics interface. With the innovative GIGABYTE Easy Energy Saver technology, the MA770-UD3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
 Supports next generation of 45nm AMD Socket AM3 processors
This motherboard supports the upcoming 45nm AMD AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
 AMD OverDrive Support
The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).


Ultra Durable 3 – Classic

GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Lower RDS(on) MOSFETs (providing lower resistance to reduce power consumption and heat generation) and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.



Dual Channel DDR2 1200+ MHz
Delivering native support for DDR2 memory up to 1200MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* DDR2 1200+ is supported with combination of AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
 50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


* 50000 hours of work time is calculated at 85? ambient temperature.


GIGABYTE innovative technology- Easy Energy Saver
Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient AM2+ and latest 45nm AM3 CPU, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
* Easy Energy Saver only supports AMD AM2+ and new generation AM3 CPU.
 EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.


DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
 Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new


64-bit Processing    Yes
Additional Information

BIOS:

  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

    • Unique Features:

  • Support for @BIOS
  • Support for Q-Flash
  • Support for Virtual Dual BIOS
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
  • Support for Easy Energy Saver


    		•
    Audio Channels    7.1
    Back Panel Interfaces    1 x mini-DIN Keyboard
    1 x mini-DIN Mouse
    1 x Toslink S/PDIF Out
    1 x S/PDIF Out
    2 x IEEE 1394a FireWire
    8 x Type A USB 2.0 USB
    1 x RJ-45 Network
    1 x Mini-phone Microphone
    1 x Mini-phone Audio Line In
    4 x Mini-phone Audio Line Out
    1 x DB-9 RS-232 Serial
    Brand Name    GIGA-BYTE
    Chipset Manufacturer    AMD
    Chipset Model    770
    Dimensions    305 mm Width x 210 mm Depth
    Expansion Slots    2 x PCI
    4 x PCI Express x1
    1 x PCI Express x16
    Floppy Controller    Yes
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Green Compliance    Yes
    Green Compliance Certificate/Authority    WEEE
    RoHS
    HyperTransport    2600 MHz
    1000 MHz
    IDE Controller    Yes
    IDE Standard    Ultra ATA/133 (ATA-7)
    Internal Interfaces    1 x HDD LED
    1 x Power LED
    1 x Reset Switch
    1 x On/Off Switch
    1 x Audio Header
    1 x CD-in/Aux-in Connector
    1 x S/PDIF Out
    2 x USB Header
    1 x FireWire Header
    1 x COM2
    1 x Chassis Intrusion Switch
    1 x S/PDIF In
    1 x Parallel Port Header
    Manufacturer    GIGA-BYTE TECHNOLOGY CO
    Manufacturer Part Number    GA-MA770-UD3
    Manufacturer Website Address    www.giga-byte.com
    Marketing Information

    The GA-MA770-UD3 introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 770 chipset, the GA-MA770-UD3 supports AMD Phenom quad-core processors, integrated DDR2 memory controller, HyperTransport 3.0 technology links and PCI Express 2.0 graphics interface. With the innovative GIGABYTE Easy Energy Saver technology, the MA770-UD3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
    Maximum Memory    16 GB
    Memory Standard    DDR2-1200/PC2-9600
    DDR2-1066/PC2-8500
    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    6
    Processor Socket    Socket AM2+ PGA-940
    Processor Support    Phenom FX
    Phenom X4
    Phenom X3
    Athlon X2
    Athlon
    Sempron X2
    Sempron
    Phenom II X4
    Athlon 64 FX
    Opteron
    Athlon 64 X2
    Athlon 64
    Processor Technology    HyperTransport Technology
    Product Model    GA-MA770-UD3
    Product Name    GA-MA770-UD3 Desktop Board
    Product Type    Desktop Motherboard
    RAID Controller    Yes
    RAID Levels    0
    1
    0+1
    1+0
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC888
    Total Processor Support    1
    1012794667
    Customer Reviews

    Reviewed by Omnimodis at @ 05:01 PM May 29, 2010

    Great board! Using it with Phenom II X4 940BE overclocked to 3.61Ghz at 1.450v and under load it never registered at more than 1.440v - with my previous MSI board to get the same speed/stability, I had to give the CPU 1.550v - also resulting in higher temps. (all components the same in both builds). Quite happy about this. The board just feels solid and so far I have no problems with it whatsoever - the BIOS is a blast to work with! I got revision 1.2 btw - also nothing to complain about!

    Reviewed by AK2010054933 at @ 09:58 PM Apr 09, 2010

    first off its the 2.0 ver which is alot better! its p4/p8 yes p8 is at the same spot, but oh well, good if your using a short cable bottom mounted PS.

    notes on the board, p8 is rotated 90 degrees, ide cable is sideways which is alot betetr for cable mangment, doesn stick out. usb though in the same spot have a shield around (same as firewire) so cant bent pins that easy, satas and usb r light blue

    this has a 750sb (said in cpu-z) and does have the acc.

    this thing though the cheapest full atx board thats am3, its great for overclocking! im using the amd athlon 250. i overclocked the fsb to 250. the cpu hummed along at 3.5ghz at stock voltage and had 39 degree temps in a 24c room. stressed tested for over 7 hours before i stopped it as i had to go to work. with the smallest increas of .025v (it goes by .025v) it lasted 7 hours at 3.7ghz, ramdom restart (was a storm, power might have gone out, did a few times at my house)

    great board, i cant believe they were upset with the ADDED features!

    note: p4 and p8 power cables work

    Reviewed by FL2010000049 at @ 06:11 AM Aug 12, 2009

    Contrary to what the other reviewer has said, it's great that DC is shipping rev 2. This new revision has an SB710, which supports ACC for unlocking additional cores on Phenom II X2 and X3 processors. The power supply connector is backwards compatible with 4-pin connectors.
