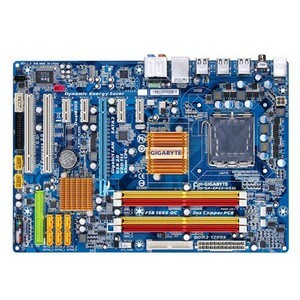

Gigabyte EP43-UD3L ATX LGA775 P43 FSB 1600 OC 1PCI-E 2PCI DDR2 SATA2 HD Sound GBLAN Motherboard

Other products from GIGABYTE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 4 lbs

SKU #: (11830BD4690)

Mft. Part #: GA-EP43-UD3L

HardwareWiki.org Info
Specifications
Introduction


The GA-EP43-UD3L introduces revolutionary GIGABYTE Ultra Durable 3 classic technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the new Intel P43 chipset, GA-EP43-UD3L delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200+ MHz, GA-EP43-UD3L motherboard provides the highest levels of performance and maximum overclocking potential. GA-EP43-UD3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 3 classic, DualBIOS design which provides optimized power savings, ultra cooling and ultra safe data protection.
On/Off Charge Support
GIGABYTE On/Off Charge technology that enables faster iPhone, iPad and iPod Touch charging. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge technology allows iPhone, iPad and iPod touch devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, with the added benefit that the PC can be on, in standby mode or even off...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
On/Off Charge Driver download
Windows® 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more


Ultra Durable 3 Classic


GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Lower RDS(on) MOSFETs (providing lower resistance to reduce power consumption and heat generation) and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


Dual Channel DDR2 1200+
Experience the advanced technology of DDR2 1200+ memory featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information
PCI-E 2.0 Graphics Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.


Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
* The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85? ambient temperature.


Quick and Effortless Overclocking with One Click
GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.
EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system


DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.

Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.


64-bit Processing    Yes
Additional Information
  • FSB 1600MHz is an overclock speed
  • BIOS:

  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

  • Audio Channels    7.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Gigabyte
    Chipset Manufacturer    Intel
    Chipset Model    P43 Express
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/133 (ATA-7)
    Depth    8.3"
    Form Factor    ATX
    Front Side Bus    1333 MHz
    1066 MHz
    800 MHz
    Gigabit Ethernet    Yes
    Green Compliance Certificate/Authority    RoHS
    WEEE
    Green Compliant    Yes
    Manufacturer    GIGABYTE Technology, Inc
    Manufacturer Part Number    GA-EP43-UD3L
    Manufacturer Website Address    www.giga-byte.com
    Marketing Information

    The GA-EP43-UD3L introduces revolutionary GIGABYTE Ultra Durable 3 classic technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the new Intel P43 chipset, GA-EP43-UD3L delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel Core 2 multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200+ MHz, GA-EP43-UD3L motherboard provides the highest levels of performance and maximum overclocking potential. GA-EP43-UD3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 3 classic, DualBIOS design which provides optimized power savings, ultra cooling and ultra safe data protection.


    Maximum Memory    16 GB
    Memory Standard    DDR2-1200/PC2-9600
    DDR2-1066/PC2-8500
    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of PCI Express x1 Slots    4
    Number of PCI Express x16 Slots    1
    Number of PCI Slots    2
    Number of PS/2 Ports    2
    Number of S/PDIF Out Ports    2
    Number of SATA Interfaces    6
    Number of Total Expansion Slots    7
    Number of USB 2.0 Ports    8
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Package Contents
  • GA-EP43-UD3L Desktop Board
  • Motherboard driver disk
  • User's Manual
  • Quick Installation Guide
  • 1 x IDE cable
  • 1 x Floppy disk drive cable
  • 2 x SATA 3Gb/s cables
  • I/O Shield

  • Processor Socket    Socket T LGA-775
    Processor Supported    Core 2 Extreme
    Core 2 Quad
    Core 2 Duo
    Pentium Dual-core
    Celeron
    Core 2 Extreme Quad-Core
    Celeron Dual-Core
    Pentium Extreme Edition
    Pentium D
    Pentium 4 (Extreme Edition)
    Pentium 4
    Celeron D
    Processor Technology    Enhanced SpeedStep Technology
    Product Model    GA-EP43-UD3L
    Product Name    GA-EP43-UD3L Desktop Motherboard
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    S/PDIF    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC888
    Standard Warranty    3 Year Limited
    Total Number of Onboard USB Ports    2
    Total Number of PCI Express Slots    5
    Total Number of USB Ports    8
    Total Processor Supported    1
    Width    12.0"
