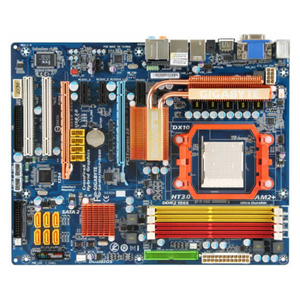

Home > Motherboards > GIGABYTE > Gigabyte MA790GP-DS4H AMD790GX ATX AM2+ Sideport 2PCI-E SATA2 RAID Sound GLAN HDMI Motherboard (11830BD4789)

Gigabyte MA790GP-DS4H AMD790GX ATX AM2+ Sideport 2PCI-E SATA2 RAID Sound GLAN HDMI Motherboard

Other products from GIGABYTE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 5 lbs

SKU #: (11830BD4789)

Mft. Part #: GA-MA790GP-DS4H

HardwareWiki.org Info
Specifications
 Introduction
The GA-MA790GP-DS4H is GIGABYTE’s next generation, high performance platform based on the new AMD 790GX Chipset and support for the new AMD Phenom™ quad-core processors, with the latest AM2+ platform support, integrated DDR2 1066 memory controller, HyperTransport™ 3.0 technology links and 128-bit Floating Point Units. In addition, GA-MA790GP-DS4H features with innovative S features, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2+ platform!
 The Industry's Leading All-Solid Capacitor motherboard Design
To ensure a longer for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-quality components, users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability.
 AMD 790GX Chipset
The AMD 790GX Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom™ processors. The AMD 790GX chipset integrated ATI Radeon™ HD 3300-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX10, Shader Model 4.0 graphics, ATI Avivo™ Technology, and brand-new ATI Hybrid Graphics Technology and AMD UVD (Unified Video Decoder) Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
 EC AOD-ACC Support
EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750 southbridge chip, destined for use AMD 790GX chipset, is set to allow AMD Phenom™ X4 Black Edition CPUs to be overclocked through AMD OverDrive™ utility further than was previously possible.
* Please be noticed that GIGABYTE's product warranty does not cover damages caused by overclocking.
 AMD OverDrive Support
The AMD OverDrive™ utility provides high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For enabling EC AOD-ACC technology, AMD OverDrive™ utility must be the version of 2.1.1 or later.
* Regarding AMD OverDrive™ utility, please visit AMD official website for details:
http://game.amd.com/us-en/drivers_overdrive.aspx or click here for downloading beta version.
 AMD Phenom™ processors
The leading-edge performance and unparallel technology of AMD AM2+ Phenom™ processors have built its strength on the well-known AMD64 framework which consisted next generation of HyperTransport 3.0 Technology, and integrated DDR2 1066 memory controller, and 128-bit Floating Point Units. The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
 Dual Channel DDR2 1066* MHz
Experience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Whether 1066 MHz memory speed is supported depends on the CPU being used, please refer "Memory Support List" for memory support information.
 Built-in 128MB DDR3 SidePort Memory
Through the built-in 128MB DDR3 1333MHz SidePort memory to accelerate 3D performance enhanced up to an additional 10~15%.
 3D Graphics Performance Upgrade- up to 3DMark 2006 2800 marks!!
The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.
  • Hardware equipment required: [CPU] AMD Phenom 9850(2.5GHz), [Memory] DDR2 1066(1GBx2), [OS] Windows Vista 32-bit.
  • Software equipment required: [Benchmark] 3DMark 2006, [Resolution] 1280x1024x32 (no AA, no AF, 32bpp).
 PCI-E 2.0 Graphics Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
 ATI Hybrid Graphics Technology support
Experience the advanced ATI Hybrid Graphics Technology, which is including ATI Hybrid CrossFireX™, ATI SurroundView™, and ATI PowerPlay™. With combination of onboard GPU and a single VGA card’s GPU*, ATI Hybrid CrossFireX™ can bring remarkable display performance on AMD platform, and also further to increase your overall system value. ATI SurroundView™ allows multiple monitors support at once and also ATI PowerPlay™ enables power saving profiles to help reduce power consumption and further resulting in reduced system temperatures and fan noise.
* Please use ATI Hybrid CrossFireX certified VGA card (i.e., ATI Radeon HD 2400, 3400 series).
** ATI Hybrid CrossFireX current only supports Windows Vista.
 ATI CrossFireX™ support
With support for latest ATI CrossFireX™ technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI-E connectivity, the GA-MA790GP-DS4H allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible.
 HDMI 1.3* certification, support Full HD 1080P
a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. GA-MA790GP-DS4H has obtained the latest HDMI 1.3* certification, able to support Full HD 1080p multi-media and HDCP (High-bandwidth Digital Content Protection) which allowing Blu-ray/ HD DVD and other protected contents playback.
* HDMI 1.3 certified in video spec only.
 Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
  • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
  • Designed to automatically deliver the best possible listening experience
  ALC889A Enables a Superior Audio Experience

Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.



Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.

7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
 DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
 Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
 IEEE1394 motherboard
This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
 CrossFire
With support for latest ATI CrossFireX™ technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-MA790GP-DS4H allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.
 Speed
The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
 Smart
The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
 Safe
Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
 AMD Live Ready
AMD Live Ready Requirement compliant.
 Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new


64-bit Processing    Yes
Additional Information

BIOS:

  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

  • Audio Channels    7.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Gigabyte
    Chipset Manufacturer    AMD
    Chipset Model    790GX
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/133 (ATA-7)
    Depth    9.6"
    DVI    Yes
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    ATI
    Graphics Controller Model    HD3300
    Green Compliance Certificate/Authority    RoHS
    WEEE
    Green Compliant    Yes
    HDMI    Yes
    HyperTransport Speed    2600 MHz
    1000 MHz
    Manufacturer    GIGABYTE Technology, Inc
    Manufacturer Part Number    GA-MA790GP-DS4H
    Manufacturer Website Address    www.giga-byte.com
    Marketing Information

    The GA-MA790GP-DS4H is GIGABYTE's next generation, high performance platform based on the new AMD 790GX Chipset and support for the new AMD Phenom quad-core processors, with the latest AM2+ platform support, integrated DDR2 1066 memory controller, HyperTransport 3.0 technology links and 128-bit Floating Point Units. In addition, GA-MA790GP-DS4H features with innovative S features, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD AM2+ platform!


    Maximum Memory    16 GB
    Memory Standard    DDR2-1066/PC2-8500
    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Multi GPU Supported    CrossFireX
    Network (RJ-45)    Yes
    Number of DVI Outputs    1
    Number of FireWire/i.LINK 400 Ports    1
    Number of HDMI Outputs    1
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of PCI Express x1 Slots    3
    Number of PCI Express x16 Slots    2
    Number of PCI Slots    2
    Number of S/PDIF Out Ports    1
    Number of SATA Interfaces    6
    Number of Total Expansion Slots    7
    Number of USB 2.0 Ports    4
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Onboard Video    On-board Video Chipset
    Processor Socket    Socket AM2+ PGA-940
    Processor Supported    Phenom X4
    Phenom X3
    Athlon 64 FX
    Athlon 64 X2
    Athlon X2
    Athlon 64
    Athlon
    Sempron
    Sempron X2
    Processor Technology    HyperTransport Technology
    Product Model    GA-MA790GP-DS4H
    Product Name    S-series GA-MA790GP-DS4H Desktop Motherboard
    Product Series    S
    Product Type    Desktop Motherboard
    RAID Levels    0
    1
    5
    1+0
    JBOD
    RAID Supported    Yes
    S/PDIF    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC889A
    Total Number of FireWire/i.LINK Ports    1
    Total Number of Onboard FireWire/i.LINK Ports    2
    Total Number of Onboard USB Ports    4
    Total Number of PCI Express Slots    5
    Total Number of USB Ports    4
    Total Processor Supported    1
    VGA    Yes
    Width    12.0"
