Specifications
• Quad PCI-E 2.0 graphics interface with ATI CrossFireX™ technology support (two x16 or four x8).
Additional Information
ROHS Compliant Dual Channel memory supported Native support available for DDR2-1066MHz Sempron-LE processors supported Chipset:
Northbridge: AMD 790FX Southbridge: AMD SB600 I/O Controller: iTE IT8718 Hardware Monitoring:
CPU/System temperature detection CPU/System/Power fan speed detection CPU overheating warning CPU/System/Power fan fail warning CPUfan speed control BIOS Features:
2 x 4 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS PnP 1.0a DMI 2.0 SM BIOS 2.4 ACPI 1.0b Unique Features:
Support for @BIOS Support for Download Center Support for Q-Flash Support for EasyTune Support for Xpress Install Support for Xpress Recovery2 Support for Virtual Dual BIOS Overclocking Features:
Voltage adjustments: Increase CPU voltage Increase DDR2 voltage by 0.05V to 0.50V with 0.05V increment Increase Chipset voltage by 0.05V to 0.40V with 0.05V increment Increase PCI Express voltage by 0.05V to 0.45V with 0.05V increment Increase FSB voltage by 0.05V to 0.35V with 0.05V increment Increase HTT voltage by 0.05V to 0.40V with 0.05V increment Increase HTR voltage by 0.05V to 0.45V with 0.05V increment Frequency adjustments: Adjust CPU host frequency from 200 MHz to 500 MHz with 1 MHz increment Adjust HT Link frequency Adjust PCI Express frequency from 100 MHz to 200 MHz with 1 MHz increment Adjust DDR2 frequency Supported Operating Systems:
Microsoft Windows Vista Microsoft Windows XP Microsoft Windows 2000
Audio Channels
7.1
Back Panel Interfaces
2 x mini-DIN
Brand Name
GIGA-BYTE
Chipset Manufacturer
AMD
Chipset Model
790FX
Dimensions
12" Width x 9.61" Depth
Expansion Slots
2 x PCI Express x16
Floppy Controller
Yes
Front Panel Interfaces
1 x HDD LED
Gigabit Ethernet
Yes
HyperTransport
5200 MHz
IDE Controller
Yes
IDE Standard
Ultra ATA/133 (ATA-7)
Manufacturer
GIGA-BYTE TECHNOLOGY CO
Manufacturer Part Number
GA-MA790FX-DQ6
Manufacturer Website Address
http://www.giga-byte.com
Marketing Information

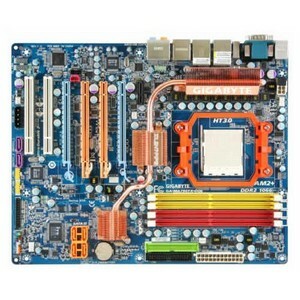

GA-MA790FX-DQ6 Desktop Board is GIGABYTE's next generation, high performance platform based on the new AMD 790FX Chipset and support for the new AMD Phenom quad-core processors, with the latest AM2+ platform support, integrated DDR2 1066 memory controller, HyperTransport 3.0 technology links and 128-bit Floating Point Units. The GIGABYTE GA-MA790FX-DQ6 also features support for PCI Express 2.0 as well as ATI CrossFireX connectivity for the ultimate gaming experience. In addition to setting new records for blistering performance, the GA-MA790FX-DQ6 is part of the GIGABYTE Ultra Durable 2 series of motherboards, featuring top quality electronic components which provide optimized power savings, ultra cooling and extended system durability.
Maximum Memory
16 GB
Memory Standard
DDR2-800/PC2-6400
Memory Technology
DDR2 SDRAM
Number of IDE Interfaces
1
Number of Memory Slots
4
Number of SATA Interfaces
6
Processor Socket
Socket AM2+
Processor Support
Phenom
Processor Technology
HyperTransport Technology
Product Model
GA-MA790FX-DQ6
Product Name
GA-MA790FX-DQ6 Desktop Board
Product Series
Ultra Durable 2
Product Type
Desktop Board
SATA Controller
Yes
SATA Standard
Serial ATA/300
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC889A
Total Processor Support
1
1011208996
