> > > Intel BOXD945GCLF2 MINI-ITX DDR2 945GC Dual Core Atom 1PCI Motherboard Retail (12200BD7601)

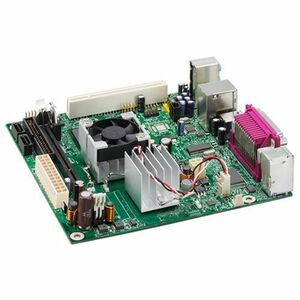

Intel BOXD945GCLF2 MINI-ITX DDR2 945GC Dual Core Atom 1PCI Motherboard Retail

Other products from INTEL | (4 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Vancouver: 0
Toronto:    0

Details:

Shipping Weight: 3 lbs

SKU #:(12200BD7601)

Mft. Part #: BOXD945GCLF2

Specifications
Quick Specs:
Maximum Memory 2 GB
Limited Warranty 3 Year
Form Factor Mini ITX
Processor Supported Atom
Total Processor Supported 1
Controller Type Serial ATA/300 Ultra ATA/100 (ATA-6)
Processor Socket Socket 437
Memory Technology DDR2 SDRAM
Processor Technology Hyper-Threading Technology
Width 6.8"
Depth 6.8"
Front Side Bus 533 MHz
Green Compliant Yes
Green Compliance Certificate/Authority RoHS ENERGY STAR
Chipset Manufacturer Intel
Chipset Model 945GC Express
Number of Memory Slots 1
Number of PCI Slots 1
Graphics Controller Manufacturer Intel
Graphics Controller Model GMA 950
Audio Channels 5.1
Gigabit Ethernet Yes
Number of IDE Interfaces 1
Number of SATA Interfaces 2
Onboard Video On-board Video Chipset
Number of Total Expansion Slots 1
Network (RJ-45) Yes
Total Number of USB Ports 4
Total Number of Onboard USB Ports 2

Audio Channels    5.1
Sound Controller Manufacturer    Realtek
Sound Controller Model    ALC662
Brand Name    Intel
Manufacturer    Intel Corporation
Manufacturer Part Number    BOXD945GCLF2
Manufacturer Website Address    http://www.intel.com
Marketing Information

The Intel Desktop Board D945GCLF2 is designed to support Internet-centric computing, delivering incredible capabilities in the new flexible Mini-ITX form factor. Featuring the integrated 45nm dual-core Intel Atom processor 330 and the Intel 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical markets. Designed with Intel?s leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.


Packaged Quantity    1
Packing    Box
Product Line    Essential
Product Model    D945GCLF2
Product Name    Essential D945GCLF2 Desktop Motherboard
Product Type    Desktop Motherboard
Controller Type    Serial ATA/300
Ultra ATA/100 (ATA-6)
Number of PCI Slots    1
Number of Total Expansion Slots    1
Audio Line In    Yes
Audio Line Out    Yes
Microphone Port    Yes
Network (RJ-45)    Yes
Number of S-Video Outputs    1
Number of USB 2.0 Ports    4
Parallel Port    Yes
S-Video    Yes
Serial Port    Yes
Total Number of USB Ports    4
VGA    Yes
Maximum Memory    2 GB
Memory Standard    DDR2-667/PC2-5300
DDR2-533/PC2-4200
Memory Technology    DDR2 SDRAM
Number of Memory Slots    1
Additional Information

BIOS:

  • Intel BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Green Compliance Certificate/Authority    RoHS
ENERGY STAR
Green Compliant    Yes
Gigabit Ethernet    Yes
Number of IDE Interfaces    1
Number of SATA Interfaces    2
Onboard Audio Header    Yes
Onboard LEDs Header    Yes
Onboard S/PDIF Header    Yes
Total Number of Onboard USB Ports    2
Depth    6.8" (171.5 mm)
Form Factor    Mini ITX
Width    6.8" (171.5 mm)
Chipset Manufacturer    Intel
Chipset Model    945GC Express
Front Side Bus    533 MHz
Processor Socket    Socket 437
Processor Supported    Atom
Processor Technology    Hyper-Threading Technology
Total Processor Supported    1
Graphics Controller Manufacturer    Intel
Graphics Controller Model    GMA 950
Onboard Video    On-board Video Chipset
Limited Warranty    3 Year
1011920562
Customer Reviews

Reviewed by JC2010015567 at @ 09:32 PM Jan 11, 2010

For "... If anyone knows a passive solution for the chipset fan, Please post." I have a single core version and I disable chispet fan and replace by a 80 mm silent fan on the side of my Mini ITX Case. Great air flow with a silent computing.

Reviewed by TL2010059069 at @ 05:23 AM Jul 29, 2009

Windows 7 runs very smooth. Great for a netop application. If anyone knows a passive solution for the chipset fan, Please post.

Reviewed by KW2010023067 at @ 04:06 PM Nov 18, 2008

In Vista, the CPU got the rating of 4.3, the graphics got a score of 2 for Aero and 3 for gaming.

I really wish they made the CPU to be independent of the chipset and give us the option of choosing which chipset we could pair the cpu with.

You might want to wait until one of the other motherboard makers come out with their own version of this board, or sit tight and wait for future improvements.
