Intel BOXD945GCLF MINI-ITX 945GC Atom 230 1.6GHZ DDR2 1PCI SATA Video Sound LAN Motherboard Retail

Other products from INTEL | (1 customer reviews)

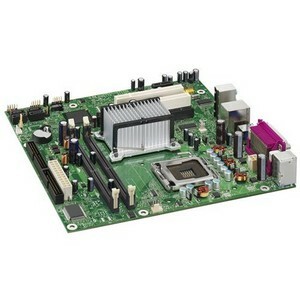

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 1 lbs

SKU #: (12200BD8483)

Mft. Part #: BOXD945GCLF

HardwareWiki.org Info
Specifications

The Intel® Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor.

Featuring the integrated 45nm Intel® Atom™ Processor and the Intel® 945GC Express Chipset, this board is an energy-efficient solution


64-bit Processing    Yes
Additional Information

BIOS:

  • Intel BIOS
  • Support for SMBIOS
  • Intel Rapid BIOS Boot
  • Intel Express BIOS Update

  • Audio Channels    2.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    945GC Express
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/100 (ATA-6)
    Depth    6.8"
    Fast Ethernet    Yes
    Form Factor    Mini ITX
    Front Side Bus    533 MHz
    Graphics Controller Manufacturer    Intel
    Graphics Controller Model    GMA950
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BOXD945GCLF
    Manufacturer Website Address    www.intel.com
    Marketing Information

    The Essential D945GCL Desktop Board is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor. Featuring the integrated 45nm Intel Atom processor and the Intel 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.


    Maximum Memory    2 GB
    Memory Standard    DDR2-667/PC2-5300
    DDR2-533/PC2-4200
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of IDE Interfaces    1
    Number of Memory Slots    1
    Number of PCI Slots    1
    Number of PS/2 Ports    2
    Number of SATA Interfaces    2
    Number of Total Expansion Slots    1
    Number of USB 2.0 Ports    4
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard Video    On-board Video Chipset
    Package Contents
  • Essential D945GCL Desktop Board
  • 1 x Cable, ATA 66/100 IDE
  • 1 x Cable, Serial ATA
  • 1 x CD, Express Installer
  • 1 x Configuration Label
  • 1 x I/O Shield
  • 1 x Quick Reference Guide

  • Package Type    Retail
    Packaged Quantity    1
    Packing    Box
    Parallel Port    Yes
    Processor Socket    Socket 437
    Processor Supported    Atom
    Processor Technology    Hyper-Threading Technology
    Product Line    Essential
    Product Model    D945GCL
    Product Name    Essential D945GCL Desktop Motherboard
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    Serial Port    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC662
    Standard Warranty    3 Year Limited
    Total Number of Onboard USB Ports    1
    Total Number of USB Ports    4
    Total Processor Supported    1
    VGA    Yes
    Width    6.8"
    1011681160
    Customer Reviews

    Reviewed by JB2010038290 at @ 10:38 PM Sep 09, 2008

    Overall a nice setup for a cheap price if your lucky enough to get it to work.
