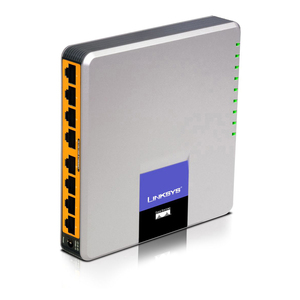

The Gigabit 8-Port Workgroup Switch provides non-blocking, wire speed switching
for your 10, 100, and 1000 megabit network clients. Drop this switch in place
of your current workgroup hub or switch, and you can upgrade your high-requirement
workstations to full Gigabit speeds as necessary, while continuing to service
other clients at their current speeds. Or build your network from the ground up,
with appropriate link speeds for each user's requirements.
Apply this switching power to your current hub-based thernet network, and your
data traffic efficiency will improve several times over. Connect your Gigabit-equipped
workstations to the Switch's 10/100/1000 ports for full-duplex, dedicated bandwidth
of up to 2000Mbps! It's perfect for graphics, multimedia, and
other applications that have to move large files across the network quickly.
With the Gigabit 8-Port Workgroup Switch, you can connect your existing 10/100
Ethernet network to your Gigabit server backbone
without any additional equipment. All ports are auto-negotiating, and have automatic
MDI/MDI-X crossover detection, so you don't have to worry about the cable type.
Address learning and aging is supported, as well as 802.3x flow control with
head-of-line blocking prevention to keep your high-speed clients from bogging
down in lower-speed traffic. The Gigabit 8-Port Workgroup Switch from Linksys
is the perfect solution for your desktop Gigabit and 10/100 networking needs.
- 8 RJ-45 10/100/1000Mbps auto-sensing half/full duplex switched ports
- All ports suppport auto MDI/MDI-X cable detection
- Fully compliant with IEEE 802.3, 802.3u, 802.3x, 802.3ab
- Non head-of-line blocking architecture
- Full-duplex IEEE 802.3x flow control and half-duplex backpressure with
intelligent port-based congestion detection and broadcast rate control
- Eight 10/100/1000Mbps, half/full duplex,switched ports
- Forwards and filters packets at non-blocking, full wire speed
- All ports have auto speed negotiation and auto
- MDI/MDI-X crossover detection
- Supports address learning and aging, 802.3x flow control and head-of-line
blocking prevention
| Additional Information |
Forwards and filters packets at non-blocking, full wire speed All ports have auto speed negotiation and auto MDI/MDI-X crossover detection Supports address learning and aging, 802.3x flow control and head-of-line blocking prevention
|
| Brand Name |
Linksys
|
| Certifications & Standards |
IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab FCC Part 15 Class A
|
| Connectivity Media |
Category 5e Twisted Pair 10/100/1000Base-T
|
| Dimensions |
48 mm Height x 186 mm Width x 154 mm Depth
|
| Flow Control |
IEEE 802.3x (Full-duplex)
Back Pressure (Half-duplex)
|
| Gigabit Ethernet Port |
Yes
|
| Humidity |
20% to 95% Non-condensing Operating
20% to 95% Non-condensing Storage
|
| Input Current |
2 A
|
| Input Voltage |
110 V AC
|
| Input Voltage Range |
110
|
| Interfaces/Ports |
8 x RJ-45 10/100/1000Base-T LAN
|
| Manufacturer |
Cisco Systems, Inc
|
| Manufacturer Part Number |
EG008W
|
| Manufacturer Website Address |
www.cisco.com
|
| Marketing Information |
The Gigabit 8-Port Workgroup Switch provides non-blocking, wire speed switching for your 10, 100, and 1000 megabit network clients. Drop this switch in place of your current workgroup hub or switch, and you can upgrade your high-requirement workstations to full Gigabit speeds as necessary, while continuing to service other clients at their current speeds. Or build your network from the ground up, with appropriate link speeds for each user's requirements.
Apply this switching power to your current hub-based Ethernet network, and your data traffic efficiency will improve several times over. Connect your Gigabit-equipped workstations to the Switch's 10/100/1000 ports for full-duplex, dedicated bandwidth of up to 2000Mbps! It's perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.
|
| Network Technology |
10/100/1000Base-T
|
| Number of Ports |
8
|
| Package Contents |
One Gigabit 8-Port Workgroup Switch One AC Power adapter One registration card One User Guide
|
| Power Consumption |
18 W @
|
| Power Source |
AC Adapter
|
| Product Line |
Instant Gigabit
|
| Product Name |
Instant Gigabit EG008W Ethernet Switch
|
| Product Type |
Ethernet Switch
|
| Standard Warranty |
2 Year Limited
|
| Status Indicators |
Power Link/Act Speed FDX
|
| System Requirements |
200Mhz or Faster Processor 64MB RAM Recommended Ethernet or Gigabit Network Adapter Cat5e Ethernet Network Cable
|
| Temperature |
32
-40
|
| Weight |
499 g
|
