> > > OCZ Vendetta 1 Heatpipe CPU Heatsink AM2 LGA775 S939 S940 S754 92MM 1200-2800RPM (13220AC8216)

OCZ Vendetta 1 Heatpipe CPU Heatsink AM2 LGA775 S939 S940 S754 92MM 1200-2800RPM

Other products from OCZ | (7 customer reviews)

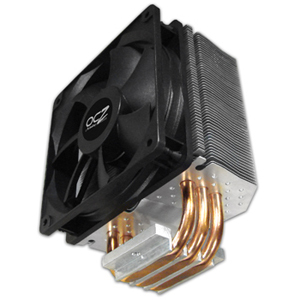

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 1 lbs

SKU #:(13220AC8216)

Mft. Part #: OCZTVEND1

For Sockets AMD 754/755/939/AM2, Intel LGA775*
3 Pure Copper heat pipes for superior heat dissipation
Pure Aluminum fins for ultimate durability
Heatsink Dimensions:(W)120 x (H)50 x (D)159mm
Fan Specs
Fan Dimensions: (L)120 x (W) 120 x (H)25mm
Rated Voltage: 12V DC
Fan Speed: 800-1500 RPM
Fan Air Flow: 65-81 CFM
Noise Level: 20-32 dBA
Bearing type: Rifle
Connector: 4 pin with PWM
Includes: 120mm Fan with rubber connectors
Mounting Hardware for all above CPUs
Thermal Compound

Reviewed by DL2010092389 at @ 07:40 PM Jun 21, 2010

I have a few of these coolers running in 4 different LGA775 cpu PC's and have had nothing but the best results with this cooler.

Installing can be a bit tricky if you've never done this before, removing the motherboard from the case is required if you want to save yourself from a lot of stress. I've done a few installs with this cooler so let me tell you that doing it the right way the first time will save you loads of headaches. Here is what I would recommend:

Step #1) Remove motherboard from case. Yeah its a pain, but it's required unless you have tiny tiny hands.

Step #2) Install the 4 rubber fan mounts on the cooler before you do anything. Use a set of plyers if its too hard to do it with just your hands. Put the fan aside for now, do not install it now.

Step #3) [Optional] This cooler is very heavy and can bend some motherboards. If you are like me, you hate the pushpin setup with LGA775 setups! Buy a Xigmatek ACK-I5361 retention bracket (SKU: 25530AC4479) which is available on this site, which will help prevent damage to your motherboard and give you a much tighter fit with the cooler and CPU die for better results. The ACK-I5361 details say that its made for Xigmatek cpu coolers, but I have used it with the Vendetta2 and can confirm they are compatible.

Step #4) put AS5 of similar thermal paste on the cpu cooler base. Take a lint free cloth (like a coffee filter) and rub the paste all over the cooler base, then wipe it off leaving only a light residue behind. Put two vertical lines of AS5 on the two inner grey parts of the cooler base. This will make sure most of the cooler will get the paste on it. The light residue left behind on the first AS5 application will improve performance.

Step #5) Mount the cooler on the motherboard, either using pushpins or with a retention bracket.

Step #6) Take the included fan and pull the rubber fan mounts through the 4 holes on each corner. Again, use plyers for easier installation. Sometimes these rubber mounts can be really stubborn to get through without plyers!

I only have experience with this cooler on an LGA775 setup, but I have read that the cooler base isn't optimal for the new LGA1366 socket. The LGA1366 cpu die size is quite large and the base of this cooler doesn't have the best performance. It will still work of course, but if your looking for serious cooling on i7, check out the Ultra True 120 (available on this site).

Anyhow, I typically get temps in the low 30's with load temps in the mid 40's with this CPU. On an overclocked q6600 (3.4ghz) I get 50-51c for my load temps.

Final verdict - if you have an LGA775, buy this cooler!

Reviewed by AK2010054933 at @ 04:26 PM Feb 25, 2010

the fan is bigger then expected, it was used in an antec 900 case, and the side case fan's corner had to be cut in order for it to fit.

the fan's center is bigger then most, so air flow might not be great in the center

rubber mounts are a pain to feed though fan holes (ripped one)

on a good note, it looks great in the case, runs cool and can beat alot of high end cpu coolers

im giving it a 3.5 but if i can get the 10 bucks back it will be a 4 maybe 4.5, the fan is a problem in my books (using a coolermaster blue led)

Reviewed by LR2010004428 at @ 09:59 PM Jan 30, 2010

Had this cooler for 6 months now, and OCed an X2 socket 939... and it's stable! It's fairly quiet and has a very slick design! If you are planning to OC, get this one!!
