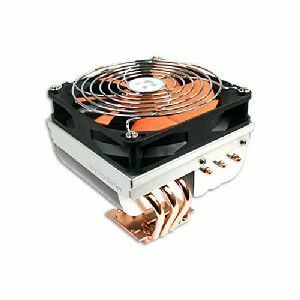

Thermaltake CL-P0114 Big Typhoon Copper Alum CPU Heatsinkfan 1300RPM 54.4CFM 16DBA LGA775 S939

Other products from THERMALTAKE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 2 lbs

SKU #: (14660AC6515)

Mft. Part #: CL-P0114

HardwareWiki.org Info
Application for Intel P4 LGA 775, and AMD K7, K8
6 Heatpipes, transfer the heat quickly
High density aluminum fins provide more surface area for good heat dissipation
Copper base solder, perfect contact to ensure the best performance
12 cm silent fan, perform well at low noise,
16dB only

Additional Information
  • Heatpipe: 6 x 6mm
  • Rated Voltage: 12 V
  • Started Voltage: 7 V
  • Power Input: 3.6 W
  • Air Pressure: 1.87 mm H2O

  • Air Flow    54.4 CFM
    Application/Usage    Processor
    Brand Name    Thermaltake
  • Intel P4 LGA775
  • Intel P4 478 FMB 1.5
  • AMD Athlon 64 / Athlon 64 FX
  • AMD Athlon XP up to 3400+
  • AMD Sempron up to 3400+

  • Connectors    3-pin TX3
    Fan Diameter    120 mm
    Fan Speed    1300 rpm
    Heatsink Depth    4.06"
    Heatsink Height    4.80"
    Heatsink Width    4.80"
    Manufacturer    Thermaltake Technology Co., Ltd
    Manufacturer Part Number    CL-P0114
    Manufacturer Website Address    www.thermaltakeusa.com
    Marketing Information
  • 6 Heatpipes, transfer the heat quickly
  • Copper base solder, perfect contact to ensure the best performance
  • High density aluminum fins provide more surface area for good heat dissipation

  • Material    Aluminum/Copper Heatsink
    Plastic Fan
    Copper Heat Pipe
    Mount Type    Clip Mount
    Product Name    Big Typhoon CPU Cooling Fan With Heatpipe Technology
    Product Type    Cooling Fan/Heatsink
    Standard Warranty    3 Year
    Weight (Approximate)    1.79 lb
