Specifications

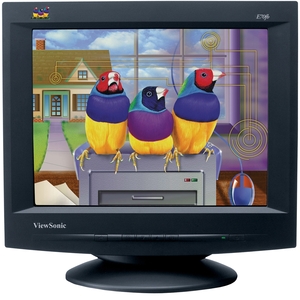

This PerfectFlat monitor is an exceptional value. The 17" (16.0" viewable) ViewSonic E70fb monitor is an exceptional value for those who demand the precise images and minimal glare provided by our PerfectFlat screen technology. This monitor offers a maximum resolution of 1280x1024 and boasts an ultra-fine 0.21mm horizontal (0.25mm diagonal) dot pitch for a superior, sharp focus. Offering a multitude of upgrades at an affordable price, the ViewSonic E70fb PerfectFlat monitor is ideal for education, home office, general business and Internet surfing.
0.21mm horizontal dot pitch
0.25mm diagonal dot pitch 1280x1024 maximum resolution
Displays a maximum resolution of 1280x1024; 1024x768 optimal resolution at 87Hz flicker-free refresh rate for easy-on-the-eyes viewing.
1280x1024 @ 66Hz
1024x768 @ 87Hz
800x600 @ 110Hz
640x480 @ 120Hz
PerfectFlat® screen
Absolutely flat screen provides realistically proportioned, precise images with reduced reflection, image distortion and eye fatigue.
SuperClear® technology
SuperClear screen technology incorporates enhanced phosphor treatment and optimized glass filter to deliver vivid colors and image clarity.
OnView® controls
Screen adjustments are made via an on-screen menu using simple controls.
OSD lock function
When activated, user-controlled OSD lock function prevents changes to monitor settings, maintaining an optimized image.
Anti-static, anti-reflection screen
This screen coating refracts light while maintaining the highest quality displayed image.
MPR II and ENERGY STAR® qualified
This monitor complies with the world’s strictest standards of low radiation, safety, ergonomics and power management while saving cost through automatic power saving modes.
Plug & Play +
Fully supports the Microsoft® Windows® auto-installation standard for easy, trouble-free configuration and set-up.
ViewSonic Wizard
This software provides user-friendly installation. The included CD-ROM automates the set-up process to deliver optimized screen performance.
PC and Mac® compatible
| Actual Screen Size |
17"
|
| Additional Information |
PerfectFlat screen: Absolutely flat screen provides realistically proportioned, precise images with reduced reflection, image distortion and eye fatigue.SuperClear technology: SuperClear screen technology incorporates enhanced phosphor treatment and optimized glass filter to deliver vivid colors and image clarity.OnView controls: Screen adjustments are made via an on-screen menu using simple controls.OSD lock function: When activated, user-controlled OSD lock function prevents changes to monitor settings, maintaining an optimized image.MPR II and ENERGY STAR certified: This monitor complies with the world's strictest standards of low radiation, safety, ergonomics and power management while saving cost through automatic power saving modes.ViewSonic Wizard: This software provides user-friendly installation. The included CD-ROM automates the set-up process to deliver optimized screen performance.Phosphor: RGB P22, medium/short persistence Glass Surface: TM=50.0%Video: RGB analog (75 ohms, 0.7 Vp-p) Sync: H/V separated (TTL), composite Power: 3-pin plug (IEC320)
COMPATIBILITY:
- PC: Compatible from VGA up to 1280x1024 (non-interlaced)
- Mac*: Power Mac up to 1024x768
MISCONVERGENCE:
- 0.25mm (max) at center
- 0.35mm (max) at corner
DISPLAY AREA:
- Factory Setting: 310mm (H) x 230mm (V)
- Maximum Scan: 320mm (H) x 240mm (V)
- Dependent on timing signal
*Adapter may be required
|
| Brand Name |
Viewsonic
|
| Certifications & Standards |
ULc/ULFCC-BCBDHHSMPR-IINOMENERGY STARICES-003TUV/GS
|
| Color |
Black
|
| Connector Type |
HD-15
|
| Dimensions |
40.64cm Height x 40.89cm Width x 42.42cm Depth
|
| Frequency |
50 Hz or 60 Hz
|
| Front Panel Controls |
Power on/offkey-1DownUpkey-2
|
| Graphics Preset Modes |
1280 x 1024 @ 66Hz
1024 x 768 @ 87Hz
800 x 600 @ 110Hz
640 x 480 @ 120Hz
|
| Humidity |
0 to 95% Non-condensing Operating
|
| Input Signal |
RGB (Analog)
|
| Input Voltage |
110V AC
220V AC
|
| Mac Compatible Modes |
1024 x 768
|
| Manufacturer |
Viewsonic Corporation
|
| Manufacturer Part Number |
E70FB-5
|
| Manufacturer Website Address |
www.viewsonic.com
|
| Marketing Information |
The 17" (16.0" viewable) ViewSonic E70fb monitor is an exceptional value for those who demand the precise images and minimal glare provided by our PerfectFlat screen technology. This monitor offers a maximum resolution of 1280x1024 and boasts an ultra-fine 0.21mm horizontal (0.25mm diagonal) dot pitch for a superior, sharp focus. Offering a multitude of upgrades at an affordable price, the ViewSonic E70fb PerfectFlat monitor is ideal for education, home office, general business and Internet surfing.
|
| Maximum Refresh Rate |
66Hz
|
| Maximum Resolution |
1280 x 1024
|
| OSD Controls |
BrightnessContrastH/V sizeH/V positionZoomPincushionPin BalanceTrapezoidParallelogramRotationViewMeter
|
| Parts Warranty/Labor |
3 Year Labor
3 Year Part - CRT
|
| Pixel Pitch |
0.25mm
|
| Platform Support |
PC
Mac
|
| Ports |
15-pin HD-15 VGA
|
| Power Consumption |
70W Typical Operating
|
| Power Management |
MPR II
EPA Energy Star
|
| Product Name |
E2 Series E70fb CRT Monitor
|
| Product Series |
E2
|
| Product Type |
Flat CRT Monitor
|
| Resolution |
1280 x 1024 @ 66Hz Maximum Resolution
1024 x 768 @ 87Hz Flicker Free Resolution
|
| Scanning Frequency |
30 kHz to 70 kHz Horizontal
50 Hz to 160 Hz Vertical
|
| Screen Size |
17"
|
| Screen Surface |
Anti-static
Anti-reflective
Tinted Glass
|
| Shipping Dimensions |
52.07cm Height x 53.34cm Width x 57.15cm Depth
|
| Shipping Weight |
20.5 kg
|
| Software Support |
ViewSonic Wizard
|
| Standard Warranty |
3 Year Limited
|
| Temperature |
5
|
| Video Bandwidth |
120 MHz Typical
|
| Viewable Screen Size |
16"
|
| Weight |
17.51 kg
|
10124491
