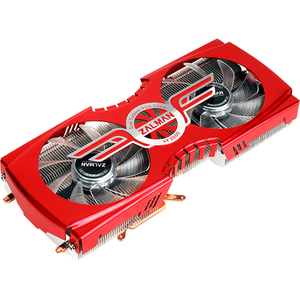

Zalman VF3000A Heatpipe VGA Cooler 2X 92MM Fans 5830 5850 5870

Other products from ZALMAN TECH | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 3 lbs

SKU #: (15210AC7832)

Mft. Part #: VF3000A

HardwareWiki.org Info
Powerful Cooling Performance
Utilizing Zalman’s latest IHD(Interactive Heat transfer Design) technology in which the high performance heatpipe’s 2-way heat transfer and maximum dissipation area provide powerful cooling performance.
  Ultra Quiet Design
The heatsink is optimized for high performance during quiet operation, incorporating a switching noise eliminated high capacity dual 92mm fan for intensified cooling performance and minimized noise.

?‘Switching Noise’ is the high frequency harmonic noise that can result from voltage regulation.
Excellent Peripheral Component Cooling
The dual 92mm fans cool not only the heatsink and VGA RAM, but all other peripheral components surrounding the VGA chipset.
  Ultra Quiet 92mm Blue LED Dual Fans
An ultra quiet 92mm fans are incorporated for minimized noise and Blue LEDs heighten the cool aesthetics.
High Performance Super Thermal Grease
The high performance super thermal grease ZM-STG2M maximizes heat transfer from the GPU to the base of VF3000A for intensified cooling performance.
  Adjustable Fan Speed Controller
FAN MATE 2, an adjustable fan speed controller, is included for performance and noise level setting according to user preference.
Environment Friendly Design
Only environment friendly materials are used for compliance with the RoHS (Restriction of Hazardous Substances) standard of the European Union.

Application/Usage    VGA Card
Brand Name    Zalman

ATI Radeon VGA Cards:

  • HD 5830
  • HD 5850
  • HD 5870

  • Fan Diameter    2 x 92 mm
    Fan Speed    2 x 2500 rpm
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    Heatsink Depth    9.41"
    Heatsink Height    2"
    Heatsink Width    3.86"
    Manufacturer    Zalman Tech Co., LTD
    Manufacturer Part Number    VF3000A
    Manufacturer Website Address    www.zalmanusa.com
    Marketing Information

    The dual 92mm fans cool not only the heatsink and VGA RAM, but all other peripheral components surrounding the VGA chipset.

    Mount Type    Spring Screw
    Number of Fans    2
    Package Contents
  • VF3000A Cooling Fan/Heatsink
  • 1 x VGA RAM Heatsink (Type A)
  • 7 x VGA RAM Heatsink (Type B)
  • 4 x Rubber Rings
  • 6 x PVC Washers
  • 4 x Fixing Nuts
  • 4 x Springs
  • 4 x Nipples
  • 3 x Rubber Washers
  • 3 Fixing Pins
  • Thermal Grease
  • FET Heatsink
  • Fan Mate 2
  • Fan Mate 2 Cable
  • Double-sided Tape
  • User's Manual

  • Product Model    VF3000A
    Product Name    VF3000A Cooling Fan/Heatsink
    Product Type    Cooling Fan/Heatsink
    Weight (Approximate)    15.17 oz
