> > > EVGA nForce 780i SLI LGA775 ATX 3PCI-E16 1PCI-E1 2PCI SATA2 RAID Sound GBLAN 1394 Motherboard (15550TH8248)

EVGA nForce 780i SLI LGA775 ATX 3PCI-E16 1PCI-E1 2PCI SATA2 RAID Sound GBLAN 1394 Motherboard

Other products from EVGA | (1 customer reviews)

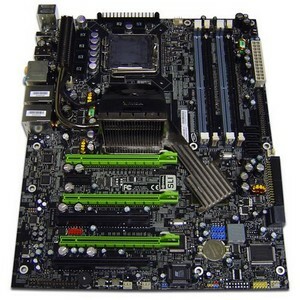

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 5 lbs

SKU #:(15550TH8248)

Mft. Part #: 132-CK-NF78-A1

Specifications
Quick Specs:
Maximum Memory 8 GB
Form Factor ATX
Processor Supported Core 2 Extreme Core 2 Quad Core 2 Duo Pentium Extreme Edition Pentium
Total Processor Supported 1
Controller Type Floppy Controller Serial ATA/300 Ultra ATA/133 (ATA-7)
Processor Socket Socket T LGA-775
Memory Technology DDR2 SDRAM
Width 9.6"
Depth 12"
Front Side Bus 1333 MHz 1066 MHz 800 MHz 533 MHz
64-bit Processing Yes
Chipset Manufacturer NVIDIA
Chipset Model nForce 780i SLI
Number of Memory Slots 4
Number of PCI Slots 2
Multi GPU Supported SLI
Audio Channels 7.1
Gigabit Ethernet Yes
Number of IDE Interfaces 1
Number of SATA Interfaces 6
RAID Supported Yes
Number of Total Expansion Slots 6
Number of PCI Express x16 Slots 3
Network (RJ-45) Yes
Total Number of USB Ports 6
Total Number of FireWire/i.LINK Ports 1
Total Number of Onboard USB Ports 2
Total Number of Onboard FireWire/i.LINK Ports 1
Total Number of PCI Express Slots 4

Audio Channels    7.1
Brand Name    EVGA
Manufacturer    EVGA Corporation
Manufacturer Part Number    132-CK-NF78-A1
Manufacturer Website Address    http://www.evga.com
Product Model    nForce 780i SLI
Product Name    nForce 780i SLI Desktop Motherboard
Product Type    Desktop Motherboard
Controller Type    Floppy Controller
Serial ATA/300
Ultra ATA/133 (ATA-7)
RAID Levels    0
1
0+1
5
JBOD
RAID Supported    Yes
Number of PCI Express x1 Slots    1
Number of PCI Express x16 Slots    3
Number of PCI Slots    2
Number of Total Expansion Slots    6
Total Number of PCI Express Slots    4
Audio Line In    Yes
Audio Line Out    Yes
Microphone Port    Yes
Network (RJ-45)    Yes
Number of FireWire/i.LINK 400 Ports    1
Number of S/PDIF Out Ports    1
Number of USB 2.0 Ports    6
S/PDIF    Yes
Total Number of FireWire/i.LINK Ports    1
Total Number of USB Ports    6
Maximum Memory    8 GB
Memory Standard    DDR2-1200/PC2-9600
DDR2-800/PC2-6400
DDR2-667/PC2-5300
DDR2-533/PC2-4200
Memory Technology    DDR2 SDRAM
Number of Memory Slots    4
Additional Information
  • StreamThru Data Transport System
  • Unified Driver Architecture (UDA)
  • nTune Performance Application
  • Firewall Technology
  • nForce Networking
  • ForceWare Unified Software Environment (USE)

Gigabit Ethernet    Yes
Number of IDE Interfaces    1
Number of SATA Interfaces    6
Onboard LEDs Header    Yes
Total Number of Onboard FireWire/i.LINK Ports    1
Total Number of Onboard USB Ports    2
Depth    12" (304.8 mm)
Form Factor    ATX
Width    9.6" (243.8 mm)
64-bit Processing    Yes
Chipset Manufacturer    NVIDIA
Chipset Model    nForce 780i SLI
Front Side Bus    1333 MHz
1066 MHz
800 MHz
533 MHz
Multi GPU Supported    SLI
Processor Socket    Socket T LGA-775
Processor Supported    Core 2 Extreme
Core 2 Quad
Core 2 Duo
Pentium Extreme Edition
Pentium
Total Processor Supported    1
1011236714
Customer Reviews

Reviewed by BK2010055942 at @ 11:40 AM Oct 22, 2008

i bought this bought this board when i order my parts and im happy i didnt cheap out

it can easily overclock to 4.4 ghz on the e8400, i use mine at 4.2, cuz i dont need any more then that

only thing i dont like is the chipset fan, covers the cool heatsink, and i hear its loud

it runs at 50c when that fan isnt on, and im not going to try with it on

i love it
