> > > Corsair Builder Series CMPSU-430CXV2 430W ATX Power Supply Active PFC 120mm Fan *3 Year Warranty* (16950AC1394)

Corsair Builder Series CMPSU-430CXV2 430W ATX Power Supply Active PFC 120mm Fan *3 Year Warranty*

Other products from CORSAIR | (0 customer reviews)

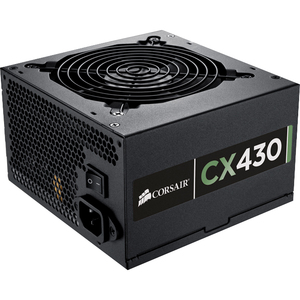

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 5 lbs

SKU #:(16950AC1394)

Mft. Part #: CMPSU-430CXV2

Specifications
Quick Specs:
Compatibility

Desktop Computer

Input Voltage 110 V AC 220 V AC
Limited Warranty 3 Year
Output Voltage 3.30 V @ 20 A 5 V @ 20 A 12 V @ 28 A -12 V @ 800 mA 5 V @ 3 A
Form Factor Internal
Country of Origin China
Height 3.4"
Width 5.9"
Depth 5.5"
Number of Fans 1
Green Compliant Yes
Green Compliance Certificate/Authority 80 Plus
Number of +12V Rails 1

Brand Name    Corsair
Manufacturer    Corsair
Manufacturer Part Number    CMPSU-430CXV2
Manufacturer Website Address    http://www.corsair.com
Marketing Information

The Builder Series CX430 V2 is the ideal choice for PC builders and upgraders who need a great value, quiet and energy efficient PSU for a low/medium specification home or office PC.


Product Line    Builder
Product Model    CX430
Product Name    Builder CX430 ATX12V & EPS12V Power Supply
Product Type    ATX12V & EPS12V Power Supply
Receptacles    1 x 20+4pin ATX Motherboard
1 x 8-pin EPS12V Motherboard
1 x 4-pin SP4 Floppy Drive
3 x 4-pin LP4 Peripheral Device
1 x PCI-E
4 x Serial ATA
Compatibility

Desktop Computer


Country of Origin    China
Green Compliance Certificate/Authority    80 Plus
Green Compliant    Yes
Color    Black
Depth    5.5" (139.7 mm)
Form Factor    Internal
Height    3.4" (86.4 mm)
Weight (Approximate)    2.01 kg
Width    5.9" (149.9 mm)
Input Voltage    110 V AC
220 V AC
Input Voltage Range    90 V AC to 264 V AC
Input Voltage Type    AC
Number of +12V Rails    1
Output Power    430 W
Output Voltage    3.30 V @ 20 A
5 V @ 20 A
12 V @ 28 A
-12 V @ 800 mA
5 V @ 3 A
MTBF    100000 Hour
Efficiency    80%
Number of Fans    1
Power Factor Correction (PFC)    Active
Protection Type    Over Voltage
Over Power
Under Voltage
Short Circuit
Limited Warranty    3 Year
