Home > Power Supplies > XFX > XFX 1000W PRO1000W Ltd Black Edition Single Rail 12V 83A 24PIN ATX Full Modular 80PLUS Platinum PSU (16950AC6259)

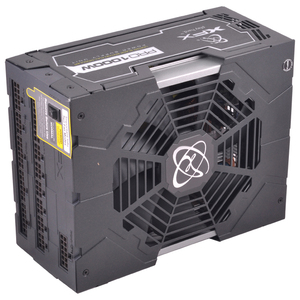

XFX 1000W PRO1000W Ltd Black Edition Single Rail 12V 83A 24PIN ATX Full Modular 80PLUS Platinum PSU

Other products from XFX | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available Real Time Check

Vancouver: 0
Toronto:    0


Shipping Weight: 7.2 lbs

SKU #: (16950AC6259)

Mft. Part #: P11000BELX

ATI CrossFire Supported    Yes
Brand Name    XFX
  • Multi-GPU System

Intel Core CPUs:

  • i3
  • i5
  • i7


  • Phenom
  • FX

Dimensions    3.4" Height x 5.9" Width x 7.5" Depth
Efficiency    95%
Form Factor    Internal
Green Compliance Certificate/Authority    80 Plus Platinum
Green Compliant    Yes
Input Current    13 A @110 V AC/6.50 A @220 V AC
Input Voltage    110 V AC
220 V AC
Input Voltage Range    90 V AC to 264 V AC
Input Voltage Type    AC
Manufacturer    XFX Technologies, Inc
Manufacturer Part Number    P1-1000-BELX
Manufacturer Website Address    www.xfxforce.com
Marketing Information

XFX ProSeries exclusive SolidLink Technology replaces wires - which cause wattage loss - with direct pin connections. The result is a extremely efficient high-power PSU. Also, with EasyRail Technology, you get one single rail for maximum power and easy set-up.

Modular    Yes
Number of +12V Rails    1
Number of Fans    1
NVIDIA SLI Supported    Yes
Output Power    1 kW
Output Voltage    3.3 V DC @ 25 A
5 V DC @ 25 A
12 V DC @ 83 A
-12 V DC @ 500 mA
5 V DC @ 3 A
Package Contents
  • Pro P1-1000-BELX ATX12V & EPS12V Power Supply
  • AC Power Cord
  • User Manual

Power Factor Correction (PFC)    Active
Product Family    Pro
Product Model    P1-1000-BELX
Product Name    Pro P1-1000-BELX ATX12V & EPS12V Power Supply
Product Series    Pro
Product Type    ATX12V & EPS12V Power Supply
Protection Type    Overload
Over Voltage
Over Power
Over Current
Short Circuit
Over Temperature
Receptacles    1 x 20+4pin ATX Motherboard
1 x 4+4pin ATX12V Motherboard
1 x 8-pin EPS12V Motherboard
6 x 6+2pin PCI-E
11 x Serial ATA
8 x 4-pin LP4 Peripheral Device
2 x 4-pin SP4 Floppy Drive
Standard Warranty    5 Year Limited
