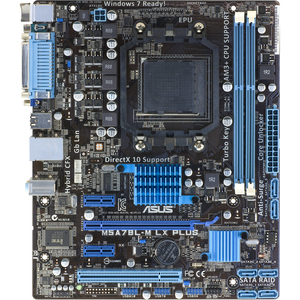

ASUS M5A78L-M LX Plus mATX AM3+ DDR3 AMD 760G 1PCI-E16 2PCI-E1 1PCI SATA2 VGA GBLAN Motherboard

Other products from ASUS | (1 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

In Stock (only 17 left)

Limited Quantity Promotion, 1 per customer. Usually ships in 3 to 5 business days.

Free Ground Shipping

Details:

Shipping Weight: 4 lbs

SKU #: (16950BD2518)

Mft. Part #: M5A78L-M LX PLUS

Our Price:

$57.31

Canadian Funds

Reg. Price: $59.52

Instant Savings: $2.20

Add to wish List

Tell a friend

More from ASUS

More like this

Print page

HardwareWiki.org Info
Specifications
AMD® FX™ /Phenom™II /Athlon™II /Sempron™ 100 Series Processors (Socket AM3+)

This motherboard supports AMD® AM3+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.

EPU-4 Engine

System Level Energy Saving
The new ASUS EPU - the world’s first power saving engine, has been upgraded to a new 4-engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. The EPU automatically provides the most appropriate power usage for the CPU, VGA card, hard drives and CPU cooler fan - helping save power and money.

Core Unlocker

Unleash True Core Performance Intelligently
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply key. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.

Turbo Key

ASUS Turbo Key allows the user to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!

ESD

Protect Your Computer with ESD Guards. Electrostatic discharge (ESD) conditions can happen while plugging or unplugging any USB peripherals-causing damage to the computer. ASUS ESD Guards clamp the ESD voltage and shunt the majority of the ESD current away for a more reliable computing environment.

ASUS Anti-Surge Protection

Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.

8-channel high definition audio

Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
** Use the chassis with HD audio module in the front panel to support 8-channel audio output.

C.P.R.(CPU Parameter Recall)

The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.

EZ-Flash 2

Simply update  BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update  utility. Simply launch this tool and update  BIOS from a USB flash disk before entering the OS. You can update  your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

100% All High-quality Conductive Polymer Capacitors

This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.

ErP ready

The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.


64-bit Processing    Yes
Audio Channels    7.1
Audio Line In    Yes
Audio Line Out    Yes
Brand Name    Asus
Certifications & Standards
  • ErP Ready
  • FCC
  • CE

Chipset Manufacturer    AMD
Chipset Model    760G
Controller Type    Serial ATA/300
Depth    8.0"
Form Factor    Micro ATX
Gigabit Ethernet    Yes
Graphics Controller Manufacturer    AMD
Graphics Controller Model    Radeon HD 3000
Green Compliance Certificate/Authority    WEEE
REACH
Green Compliant    Yes
HyperTransport Speed    5.20 GT/s
Manufacturer    ASUS Computer International
Manufacturer Part Number    M5A78L-M LX PLUS
Manufacturer Website Address    usa.asus.com
Marketing Information

This motherboard supports AMD AM3+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via Hyper Transport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process.


Maximum Memory    8 GB
Memory Form Factor    DIMM
Memory Standard    DDR3-1866/PC3-15000 (O.C.)
DDR3-1600/PC3-12800 (O.C.)
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
Memory Technology    DDR3 SDRAM
Microphone Port    Yes
Network (RJ-45)    Yes
Number of Memory Slots    2
Number of Network (RJ-45) Ports    1
Number of Onboard USB 2.0 Ports    6
Number of PCI Express x1 Slots    2
Number of PCI Express x16 Slots    1
Number of PCI Slots    1
Number of PS/2 Ports    2
Number of SATA Interfaces    6
Number of Total Expansion Slots    4
Number of USB 2.0 Ports    4
Onboard Audio Header    Yes
Onboard LEDs Header    Yes
Onboard S/PDIF Header    Yes
Onboard Video    On-board Video Chipset
Package Contents
  • M5A78L-M LX PLUS Desktop Motherboard
  • 1 x User's manual
  • 1 x I/O Shield
  • 2 x SATA 3Gb/s Cable(s)
  • 1 x Support DVD

Parallel Port    Yes
PCI Express Standard    PCI Express 2.0
Power Supply Supported    EPS12V
Processor Socket    Socket AM3+
Processor Supported    Athlon II X3
Athlon II X4
Athlon II X2
Phenom II X3
Phenom II X4
Phenom II X2
Phenom II X6
Sempron Dual Core
Athlon II
Phenom II
Processor Technology    HyperTransport 3.0 Technology
Cool'n'Quiet Technology
Product Model    M5A78L-M LX PLUS
Product Name    M5A78L-M LX PLUS Desktop Motherboard
Product Type    Desktop Motherboard
PS/2 Port    Yes
RAID Levels    0
1
1+0
JBOD
RAID Supported    Yes
Serial Port    Yes
Sound Controller Manufacturer    Realtek
Sound Controller Model    ALC887
Standard Warranty    3 Year
Total Number of Onboard USB Ports    6
Total Number of PCI Express Slots    3
Total Number of USB Ports    4
Total Processor Supported    1
VGA    Yes
Width    9.6"
1021094696
Customer Reviews

Reviewed by AB2010019276 at @ 12:50 AM Jun 19, 2012

I bought it because the CPU I have is a version of the phenom II 955 is not recognized on Gigabyte GA-M68M-S2P. And now everything works perfectly. I had bosd and I could not reinstall the os. The card works perfectly with a the CPU, it is not expensive and it has nothing but solid caps
