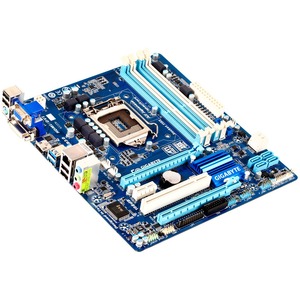

Gigabyte Z77M-D3H mATX LGA1155 Z77 DDR3 2PCI-E16 1PCI-E1 HDMI CrossFireX SATA3 USB3.0 Motherboard

Other products from GIGABYTE | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available (only 25 left)

Limited Quantity Promotion, 1 per customer.
Details:

Shipping Weight: 2.2 lbs

SKU #: (16950BD7877)

Mft. Part #: GA-Z77M-D3H

HardwareWiki.org Info
Specifications
GIGABYTE Z77 Series Motherboards
GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors.
3rd Generation Intel® Core™ processors
New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create  a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.
GIGABYTE 333 Onboard Acceleration
GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration, a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.
GIGABYTE 3D BIOS (patent pending)

The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

UEFI DualBIOS™ Technology
At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

3D Mode
Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.

Advanced Mode
Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.

GIGABYTE EZ Smart Response
The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.
GIGABYTE On/Off Charge
GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.

* Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.
Designed for PCI Express Gen.3 Support
GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
Multi-display support with AMD CrossFireX™
AMD CrossFireX™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
LAN Optimizer - Intelligent optimization network management tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
GIGABYTE EZ Setup
GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel® Smart Response, Intel® Rapid Start and Intel® Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.
Intel® Rapid Start Technology
Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.
Intel® Smart Connect Technology
Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.

Auto Sync with Cloud
No manual interaction required to synchronize with cloud services.

Data Ready
Email, social media, and cloud apps always updated and available at power on.


64-bit Processing    Yes
Audio Channels    7.1
Audio Line In    Yes
Audio Line Out    Yes
Brand Name    Gigabyte
Chipset Manufacturer    Intel
Chipset Model    Z77 Express
Controller Type    Serial ATA/300
Serial ATA/600
Depth    8.7"
DVI    Yes
Form Factor    Micro ATX
Gigabit Ethernet    Yes
HDMI    Yes
Manufacturer    GIGABYTE Technology, Inc
Manufacturer Part Number    GA-Z77M-D3H
Manufacturer Website Address    www.giga-byte.com
Marketing Information

GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.


Maximum Memory    32 GB
Memory Form Factor    DIMM
Memory Standard    DDR3-1600/PC3-12800
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
Memory Technology    DDR3 SDRAM
Microphone Port    Yes
Multi GPU Supported    CrossFireX
Network (RJ-45)    Yes
Number of DVI Outputs    1
Number of HDMI Outputs    1
Number of Memory Slots    4
Number of Network (RJ-45) Ports    1
Number of Onboard USB 2.0 Ports    4
Number of Onboard USB 3.0 Ports    2
Number of PCI Express x1 Slots    1
Number of PCI Express x16 Slots    2
Number of PCI Slots    1
Number of PS/2 Ports    1
Number of SATA Interfaces    6
Number of Total Expansion Slots    4
Number of USB 2.0 Ports    4
Number of USB 3.0 Ports    2
Onboard Audio Header    Yes
Onboard LEDs Header    Yes
Onboard S/PDIF Header    Yes
Onboard Serial Header    Yes
Onboard Video    CPU Dependent Video
PCI Express Standard    PCI Express 3.0
PCI Express 2.0
Power Supply Supported    EPS12V
Processor Socket    Socket H2 LGA-1155
Processor Supported    Core i3
Core i5
Core i7
Pentium Dual-core
Celeron Dual-Core
Product Line    Ultra Durable 4 Classic
Product Model    GA-Z77M-D3H
Product Name    Ultra Durable 4 Classic GA-Z77M-D3H Desktop Motherboard
Product Type    Desktop Motherboard
PS/2 Port    Yes
RAID Levels    0
1
5
1+0
RAID Supported    Yes
Sound Controller Manufacturer    VIA
Sound Controller Model    VT2021
Total Number of Onboard USB Ports    6
Total Number of PCI Express Slots    3
Total Number of USB Ports    6
Total Processor Supported    1
VGA    Yes
Width    9.6"
1022177619
Customer Reviews
Manufacturer's Warranty Contact Information

Currently Gigabyte accepts end users’ requests on RMA service.
Motherboards, Video cards, servers and Rackmount server boards carry three years limited warranty.

Warranty Effective On Date of Manufacture

Gigabyte determines warranty based on the manufacture date. The manufacture date can be verified by the serial number found on the product. The first four digits after "SN" determine the year and week of manufacturing date. For example:

"01)04719331729028(21) SN0213030585" represents the 13th week of 2002

RMA Request Procedures and Guidelines

  • All RMA request forms must be completed in order to obtain a RMA number

  • RMA request with missing or incorrect serial number(s) may result in a delayed process or a rejection of request

  • Any model discrepancy for received items may result in a delayed processing timeProducts received with no RMA number may delay processing or refusal
    (Gigabyte will not be responsible for items received without proper information)
  • No cross shipping or advanced replacements under any circumstances

  • Products will either be repaired or replaced at our discretion

  • Replacements may include new or refurbished products
    (Replacements will be for the exact or equivalent product)
  • Average turnaround time will be 2-3 business working weeks upon receipt (applies to quantities not exceeding 20 pieces)
  • If the information on your request varies from the actual item(s) received, RMA will be based on the actual item(s) received
  • RMA numbers will be valid for 30 days after issued date
  • Gigabyte will provide one way freight via UPS or FedEx ground free of charge
  • For consecutive violation for No Trouble Found (NTF), a testing fee per NTF board or system may apply.

Warranty Period by Product

  • Motherboards
    • All motherboards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
  • Graphic Accelerator Cards (VGA)
    • All graphic cards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
  • Servers(Server Boards/Barebone Server System)
    • Server Boards carry a 3 years limited warranty (First 2 years parts & labor, 3rd year labor only)
    • Rackmount server boards carry a 3 year limited warranty (First 2 years parts and labor, 3rd year labor only)
    • Rackmount components carry a 2 year limited warranty
  • PC Barebones System
    • Motherboards assembled with barebones systems carry a 3 years limited warranty (1st year parts & labor, 2nd and 3rd year labor only)
      * Gigabyte shall provide the fees/charges for parts upon testing of motherboards in their 2nd and 3rd year of warranty
  • Peripherals (Coolers, Keyboards, Mouse, Optical Devices, etc.)
    • All peripherals carry a 1 year limited warranty
  • Notebook
    • All notebooks carry a 1 year limited warranty
  • Wireless and Networking Products
    • All wireless and networking products carry a 1 year limited warranty

Please register at http://rma.gigabyte.us/ for your RMA account!
