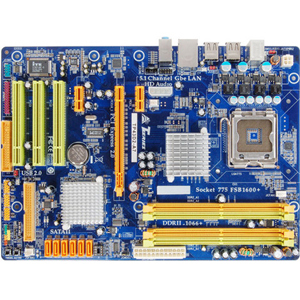

Biostar TP43D2-A7 ATX LGA775 P43 DDR2 1PCI-EX 3PCI SATA2 HD Sound GBLAN Motherboard

Other products from BIOSTAR | (1 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes

Not Available


Shipping Weight: 5 lbs

SKU #: (17060BD9366)

Mft. Part #: TP43D2-A7

HardwareWiki.org Info

Intel P43 chipset

The Intel® P43 Chipsets support the latest multi-core processors with FSB 1600MHz, including the 45nm processors, with its record breaking performance and greater energy efficiency. Intel® P43 chipset, with optimized system memory capabilities, and maximum overclocking, providing faster boot and application load times and additional power savings and providing scalable options for you ask for HD video and 3D Gaming!

FSB1600 Support

Based on Biostar’s excellent Tseries design and reliability components, this motherboard native supported FSB 1600/ 1333 / 1066 / 800 MHz, it can allows you to enjoy the intel latest technology supported by one of the most powerful CPUs in the world.

PCI Express 2.0 Support

PCI Express 2.0 bus architecture is offering a future-proofing bridge to tomorrow’s most bandwidth-hungry games and 3D applications by maximizing 5 GT/s of bandwidth. PCI Express 2.0 motherboards are fully backwards compatible with existing PCI Express products for broad support of PC peripherals.

BIOS-Software Features


Effortlessly update BIOS from a USB flash disk before entering your OS.
BIO-FLASHER is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB Pen Driver before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.


BIO-ReLife Technology let you to resume crushed BIOS data from a USB flash Pen Driver that put the new BIOS file. This considerate BIOS utility can restore your system and far from the BIOS Crush situation.


Biostar offered 3 kind of overclocking settings (V6/V8/V12) that provided good, better, best O.C setting which turned in Biostar Labs. The motherboard features the Biostar T series Motherboards that allows users to conveniently load our preset BIOS settings.
These BIOS settings giving users freedom to ebjoy overclocking with simple instruction.

Tseries OC Utility

T-series OC utility is presents the most convenient Windows based system performance enhancement and manageability utility. It’s 4 separated utility which included Overclocking , BIOS Update and H/W Monitoring . PC health for monitoring system status.

eHot-Line Utiltiy

Integrated e-service, it automatically sends your technical support request to Biostar Globe tech support without any delay.

Other Features

Clean Tone Technology

Biostar innovative low distortion audio design reduces noise of high frequencies generated by a motherboard. There is one independent capacitor per channel to handle the noise occurred .Onboard 8+2 channel Realtek ALC 888CODEC features HD Audio solution. T-series delivers a Signal to Noise Ratio over 95dB that perfectly fits into the Windows Vista premium enviroment.

Rapid Switch

No more meddling with Power and Reset jumpers on the board. The Power and Reset buttons are built onboard. It is convenient for DIY users to test the board without short-circuiting the wrong pins.

Rapid Debug

No need to check any H/W installation error flurried. On board
LED indicator will answer the question for user.

X.D.C (eXtreme Durable Capacitors)

Biostar adopt with low ESR and high ripple conductive solid state caps provide sufficient, stable power supply to the CPU. Also the life-time can be more than 6.25 X of ordinary liquid caps.

Tweak Tech

Biostar owned unique engineering PWM layout with low ESR and high ripple conductive solid state caps to provide sufficient, stable power supply to the CPU. And the same philosophy applies to our DDR design to enhance voltage stability of memory.

64-bit Processing    Yes
Additional Information
  • 1600MHz FSB supported via overclocking
  • 1066MHz DDR2 memory supported via overclocking

  • Audio Channels    5.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Biostar
    Chipset Manufacturer    Intel
    Chipset Model    P43 Express
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/133 (ATA-7)
    Depth    8.7"
    Form Factor    ATX
    Front Side Bus    1333 MHz
    1066 MHz
    800 MHz
    Gigabit Ethernet    Yes
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    Manufacturer    Biostar USA
    Manufacturer Part Number    TP43D2-A7
    Manufacturer Website Address    www.biostar-usa.com
    Maximum Memory    8 GB
    Memory Standard    DDR2-800/PC2-6400
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of PCI Express x1 Slots    2
    Number of PCI Express x16 Slots    1
    Number of PCI Slots    3
    Number of PS/2 Ports    2
    Number of SATA Interfaces    6
    Number of Total Expansion Slots    6
    Number of USB 2.0 Ports    6
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Processor Socket    Socket T LGA-775
    Processor Supported    Core 2 Extreme
    Core 2 Quad
    Core 2 Duo
    Pentium Dual-core
    Celeron Dual-Core
    Pentium 4
    Pentium D
    Processor Technology    Enhanced SpeedStep Technology
    Product Model    TP43D2-A7
    Product Name    T Series TP43D2-A7 Desktop Motherboard
    Product Series    T
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC662
    Total Number of Onboard USB Ports    3
    Total Number of PCI Express Slots    3
    Total Number of USB Ports    6
    Total Processor Supported    1
    Width    12.0"
    Customer Reviews

    Reviewed by BK2010055942 at @ 06:14 AM Oct 10, 2008

    was going to be buying this board, its reviews on forums was great, did a good job at OC. but direct canada uped the price, so now i have to rethink my budget because im not over :(

    its a good board though
