Home > Motherboards > Zotac > Zotac IONITX-G-E MINI-ITX Atom N330 MCP7A-ION DDR2 PCI-E16 SATA RAID GBLAN Audio Video Motherboard (26670BD2345)

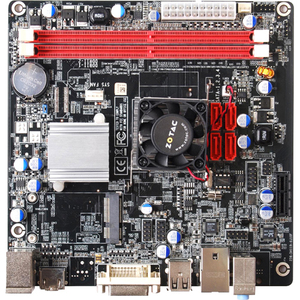

Zotac IONITX-G-E MINI-ITX Atom N330 MCP7A-ION DDR2 PCI-E16 SATA RAID GBLAN Audio Video Motherboard

Other products from Zotac | (0 customer reviews)

Photos may not resemble actual product and are purely for illustration purposes
Availability:

Not Available

Details:

Shipping Weight: 3 lbs

SKU #: (26670BD2345)

Mft. Part #: IONITX-G-E

Specifications
Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC® ION platform. The mini-ITX form factor ZOTAC® ION combines a high-performance NVIDIA® ION graphics processor with a power-efficient Intel® Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, & productivity and HD video playback tasks.

NVIDIA® PureVideo HD technology harnesses the power of the ION's 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the ION GPU for flawless HD and superior SD video playback.


Additional Information

Chipset Model:

  • MCP7A-ION

  • Audio Channels    7.1
    Back Panel Interfaces    1 x mini-DIN Keyboard
    6 x Type A USB 2.0 USB
    1 x DVI-I
    1 x HDMI
    1 x HD-15 VGA
    1 x Mini-phone Audio Line In
    4 x Mini-phone Audio Line Out
    1 x Mini-phone Microphone
    Brand Name    ZOTAC
    Chipset Manufacturer    nVIDIA
    Dimensions    6.70" Width x 6.70" Depth
    Expansion Slots    1 x Mini PCI Express
    1 x PCI Express x1
    Form Factor    Mini ITX
    Front Side Bus    533 MHz
    Gigabit Ethernet    Yes
    Internal Interfaces    1 x HDD LED
    1 x Power LED
    1 x On/Off Switch
    1 x Reset Switch
    4 x USB Header
    Manufacturer    ZOTAC International
    Manufacturer Part Number    IONITX-G-E
    Manufacturer Website Address    www.zotac.com
    Marketing Information

    With IONITX-G-E Desktop Board experience fluid and vivid high-definition video playback. The mini-ITX form factor ZOTAC ION motherboards combine a high-performance NVIDIA ION graphics processor with a power-efficient Intel Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, productivity and HD video playback tasks


    Maximum Memory    4 GB
    Memory Standard    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    Memory Technology    DDR2 SDRAM
    Number of Memory Slots    2
    Number of SATA Interfaces    4
    Onboard Video    Yes
    Processor Support    Atom Dual-Core
    Processor Technology    Hyper-Threading Technology
    Product Model    IONITX-G-E
    Product Name    IONITX-G-E Desktop Motherboard
    Product Type    Desktop Motherboard
    RAID Controller    Yes
    RAID Levels    0
    1
    0+1
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Total Processor Support    1
    1014530064
